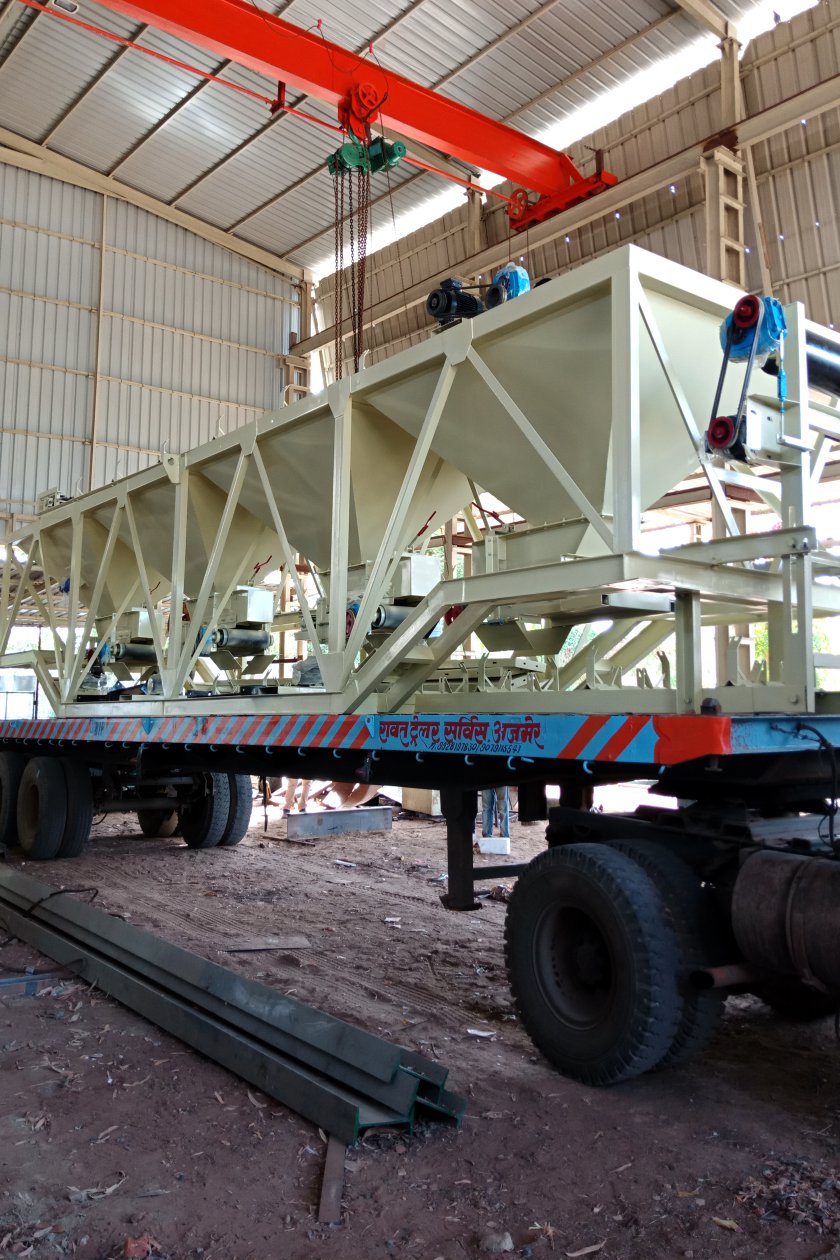

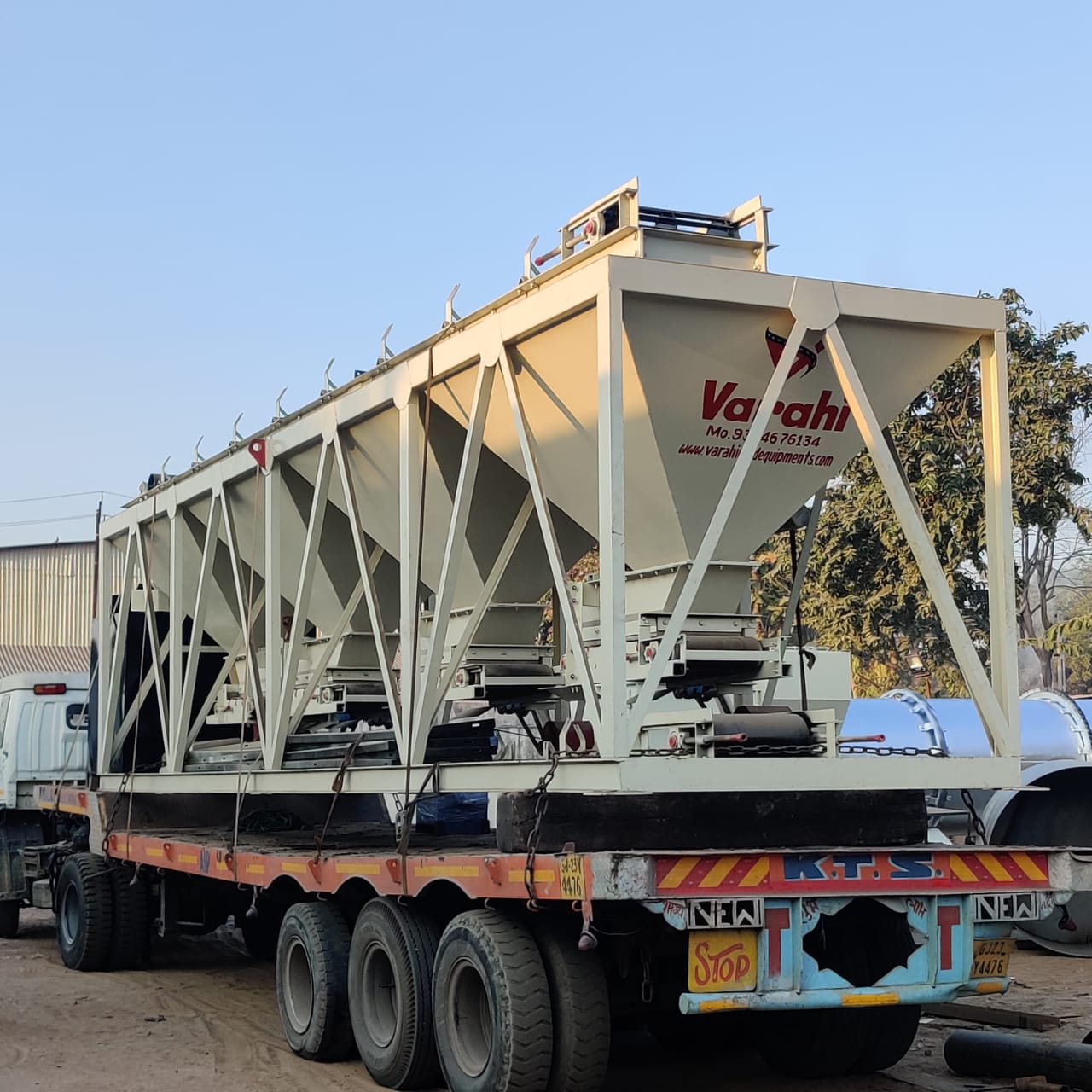

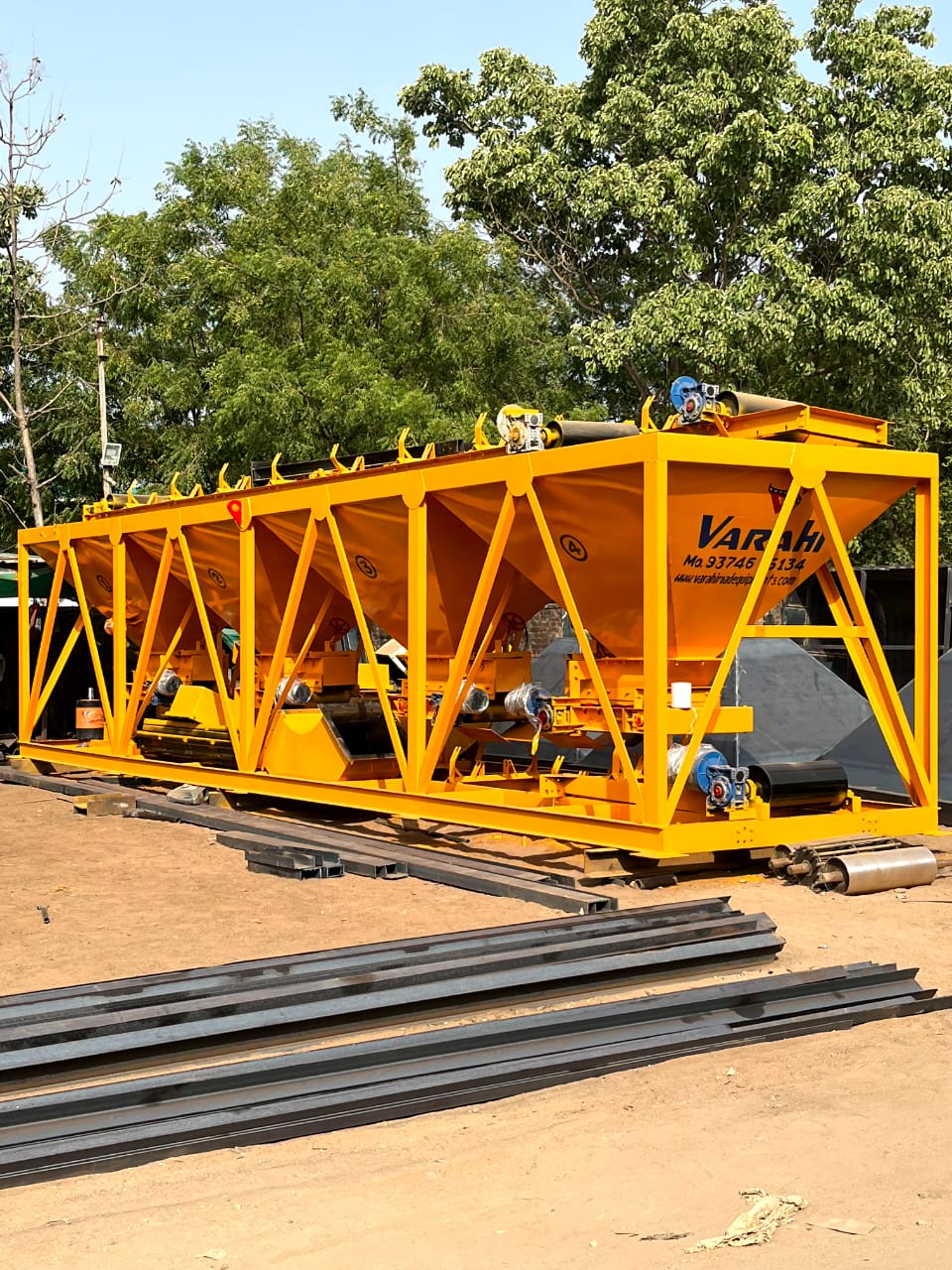

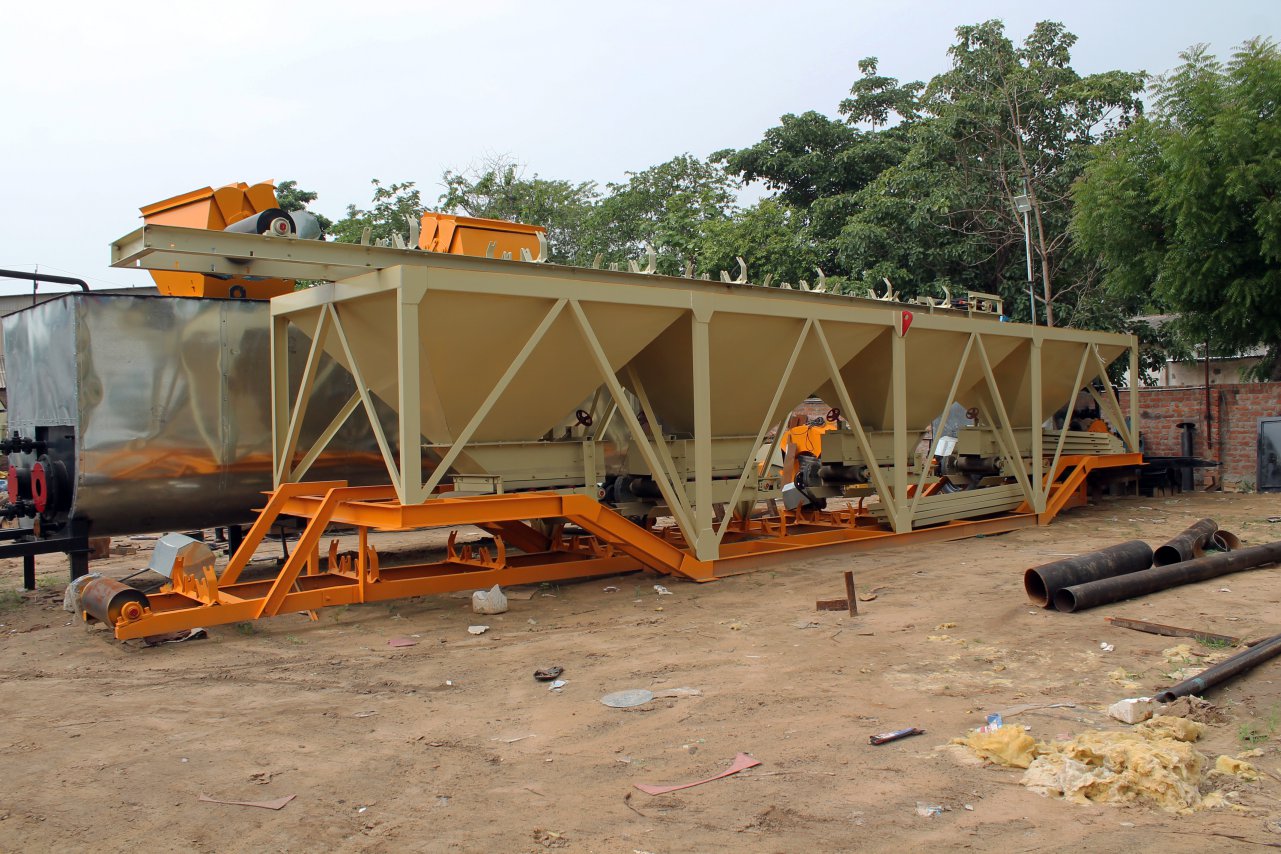

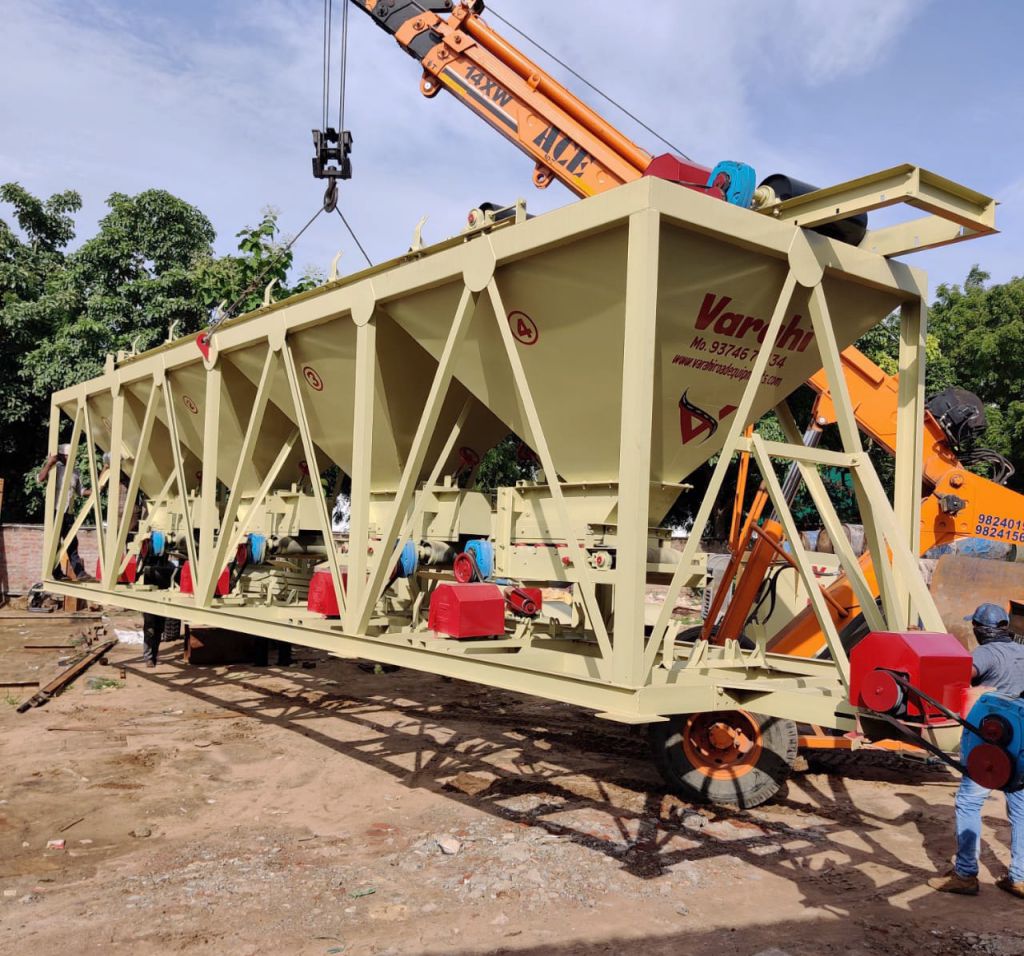

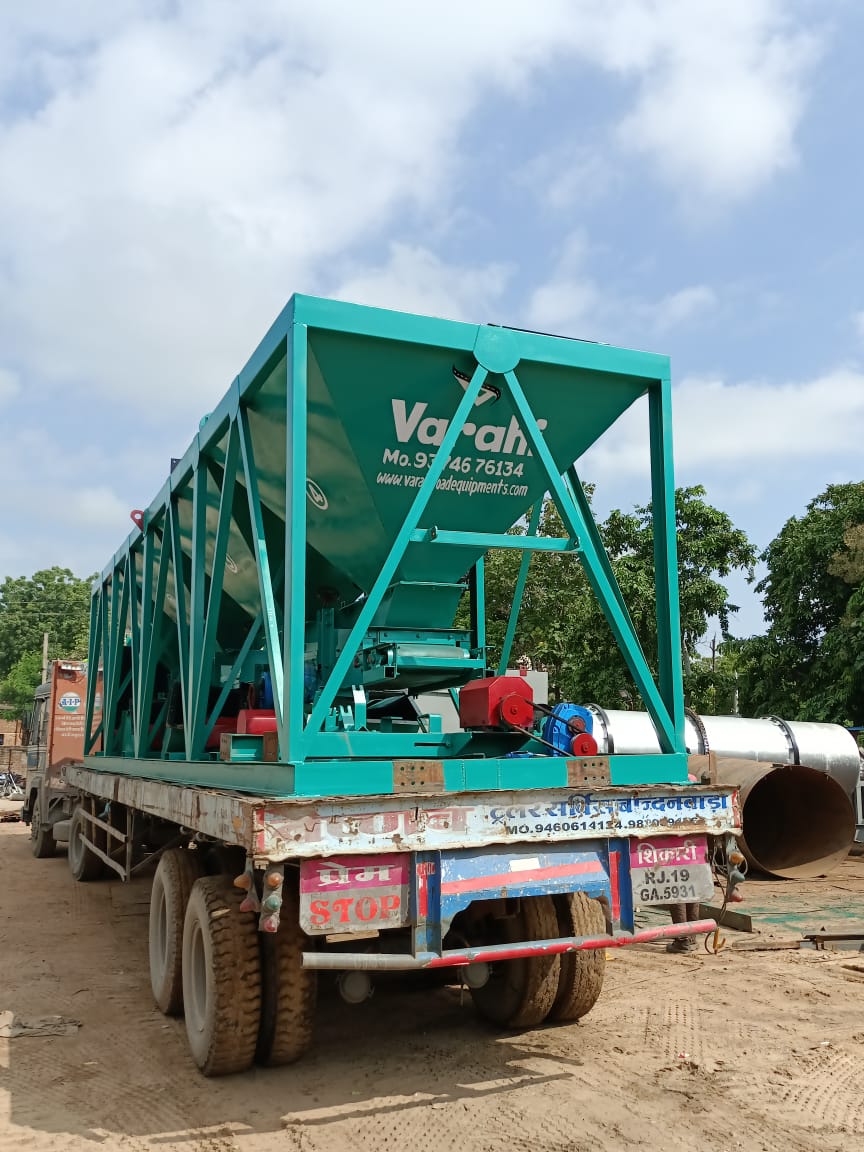

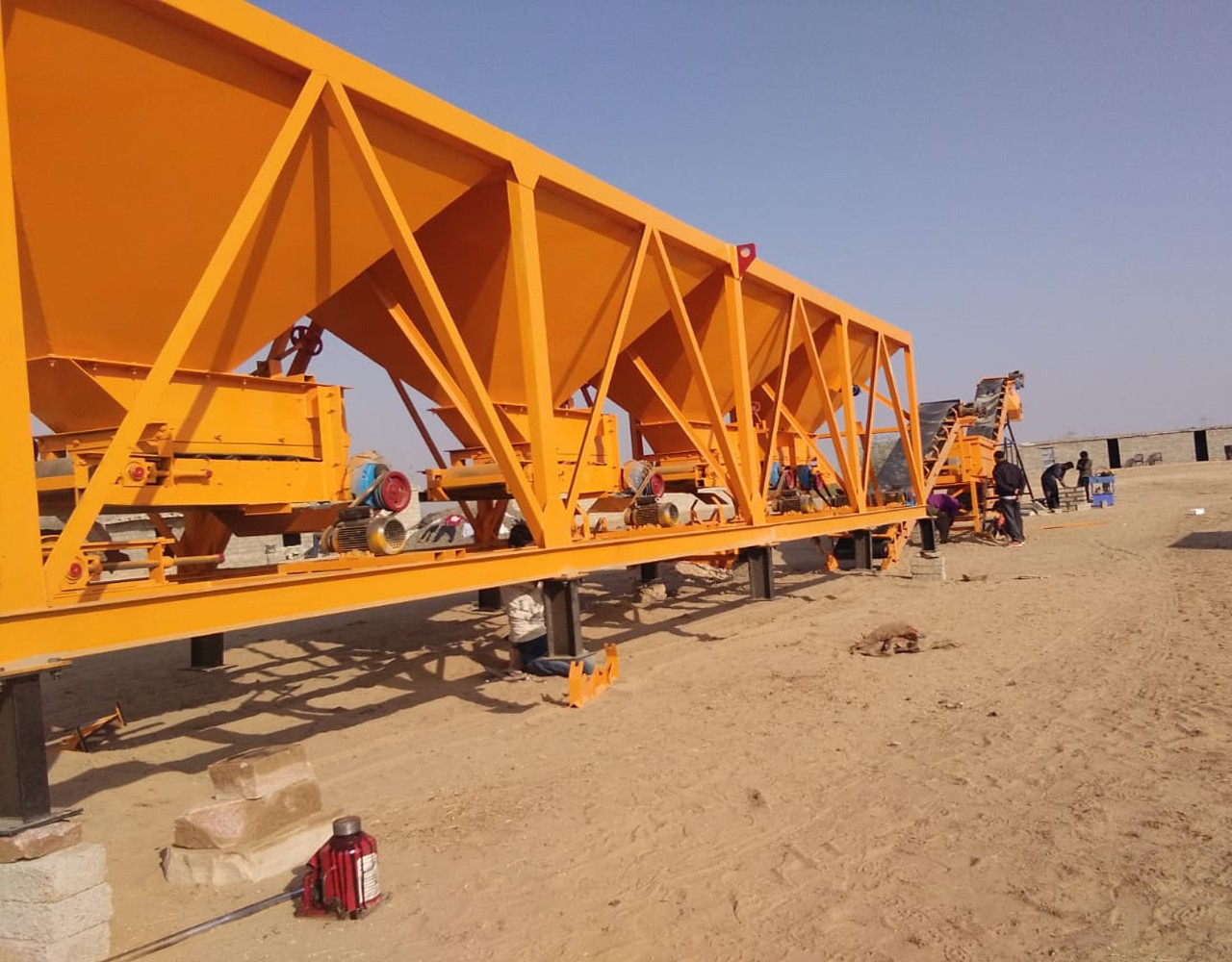

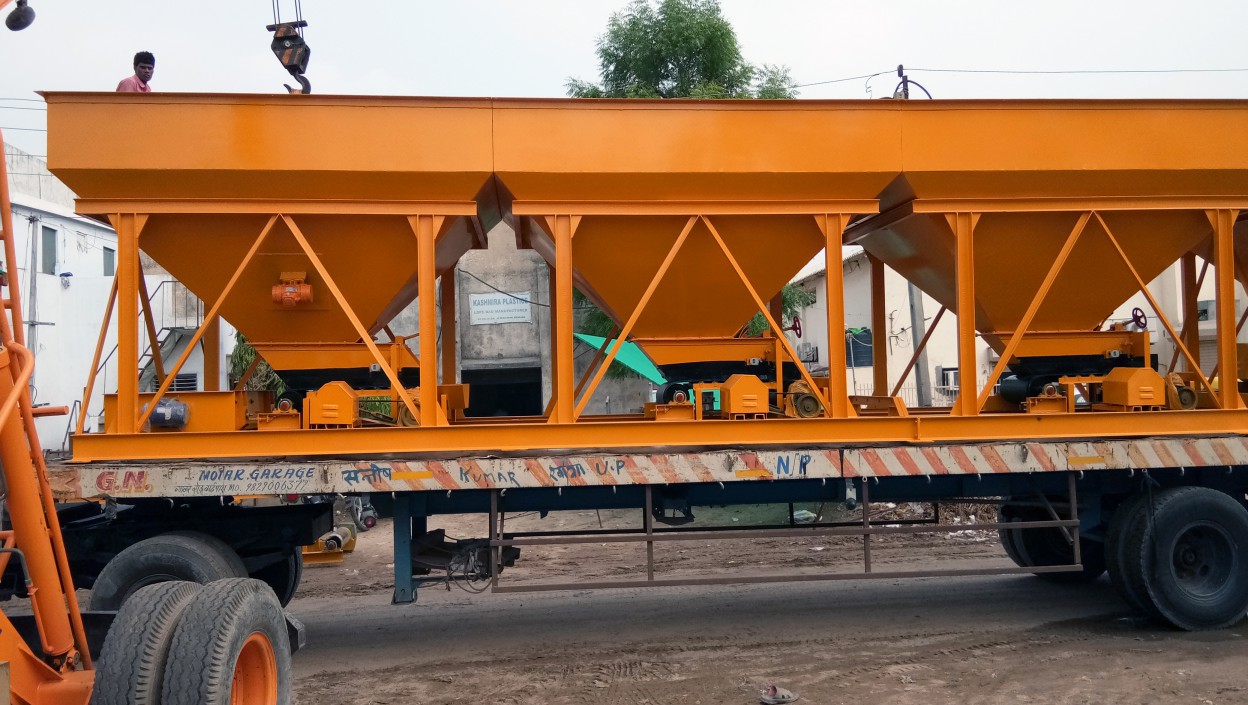

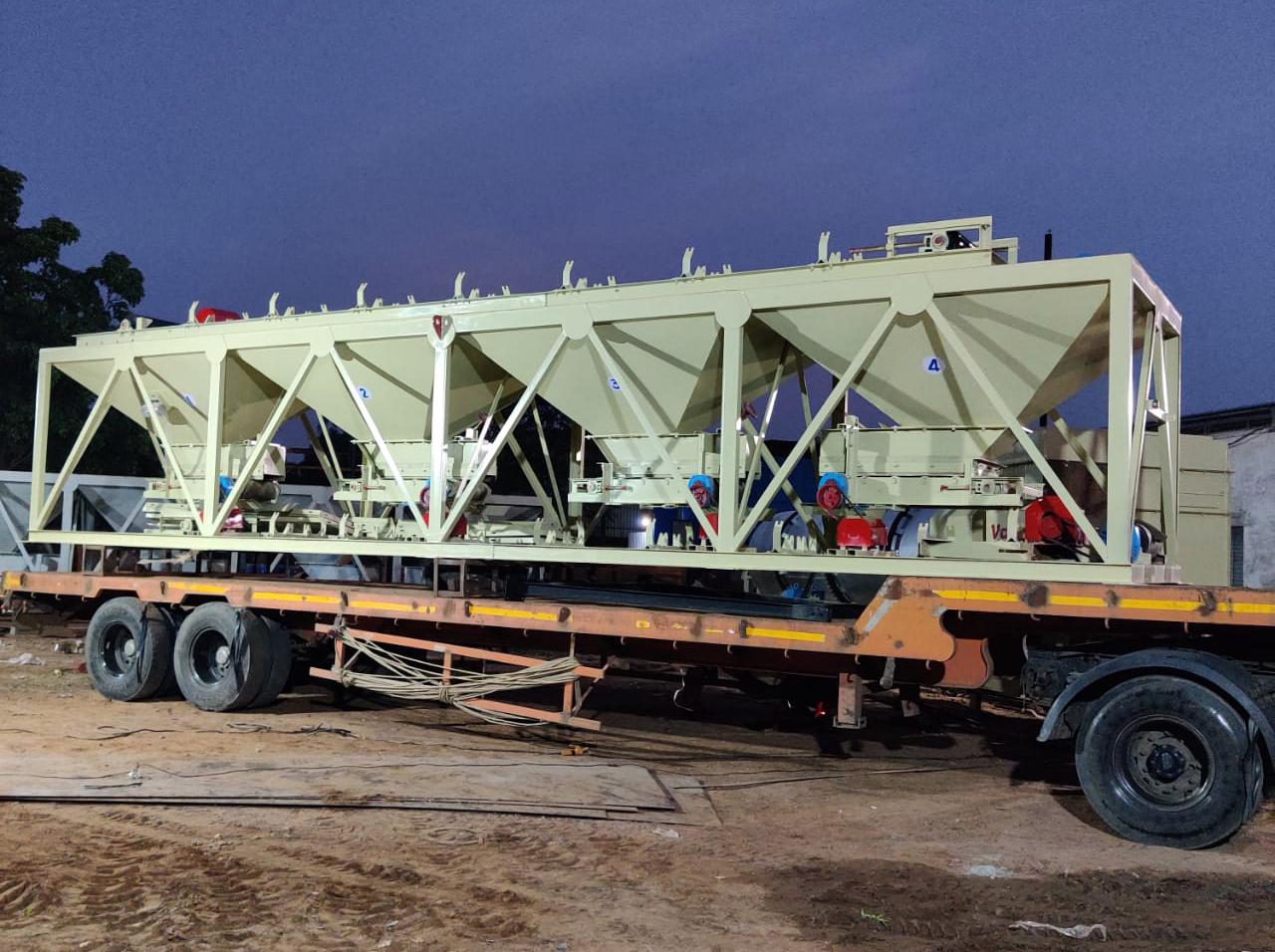

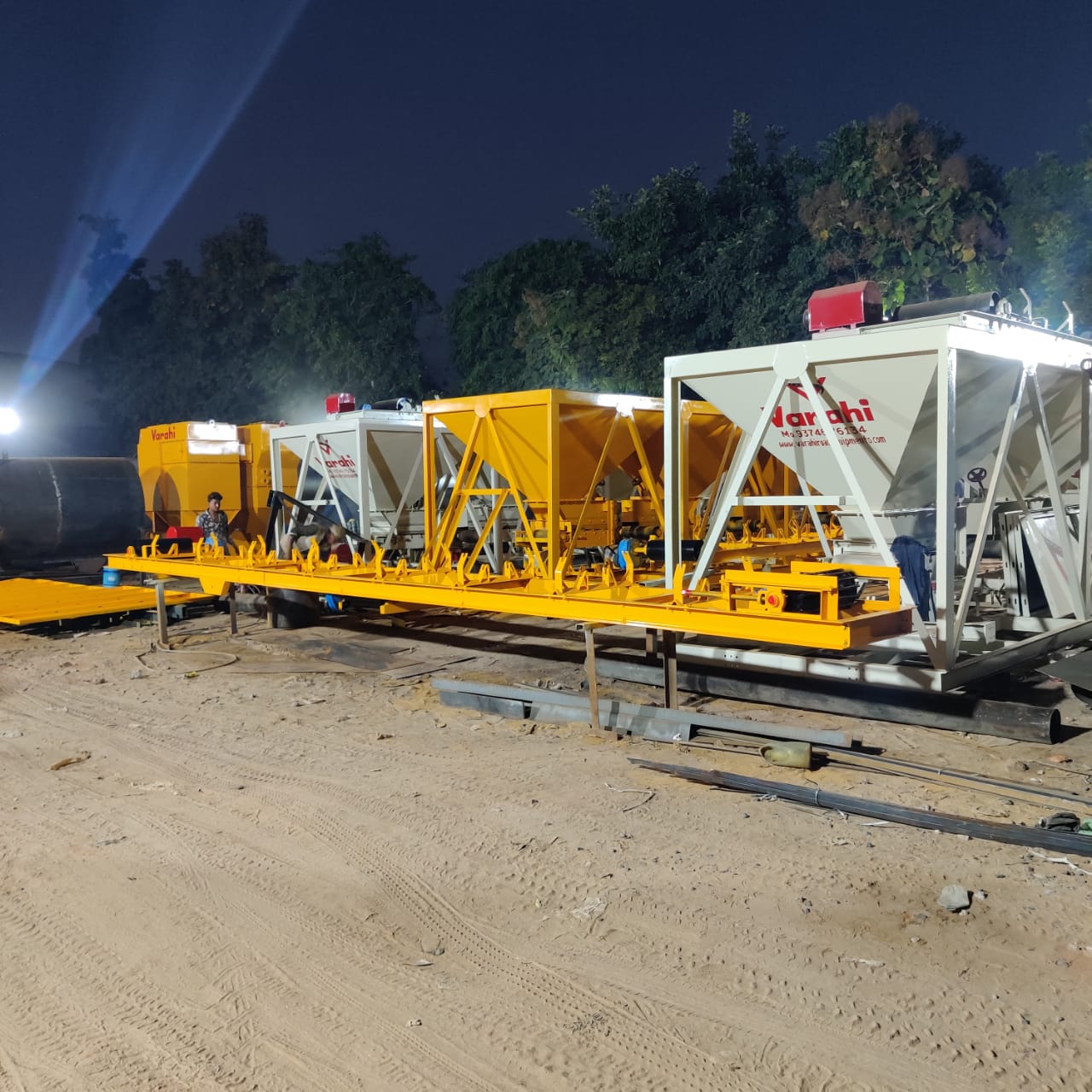

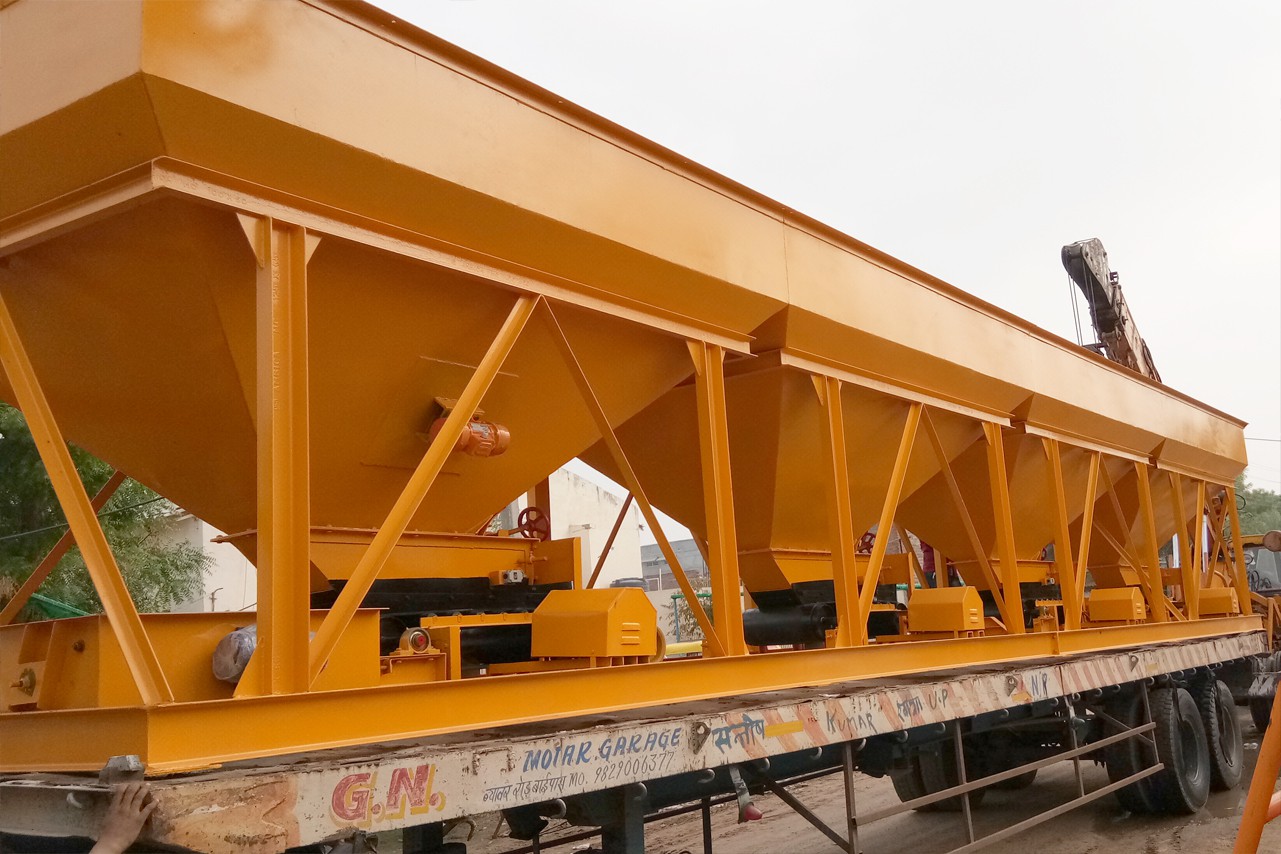

Fourbin Feeder

Quick Enquiry

With our vast industry experience, we have established ourselves as the prominent manufacturer, exporter and supplier of sophisticated Four Bin Feeder. In order to assure the quality of four bin feeders, our team of experts examines this on various parameters. Our offered four bin feeders are available in different specifications, in order to meet numerous requirements of customers. Along with that, these four bin feeders are highly acknowledged for perfect design and durability, among our customers.

Silent Features:
  • Hassle-free performance
  • Less maintenance
  • Long working life
  • Durable
  • Easy maintenance
  • Accurate dimension

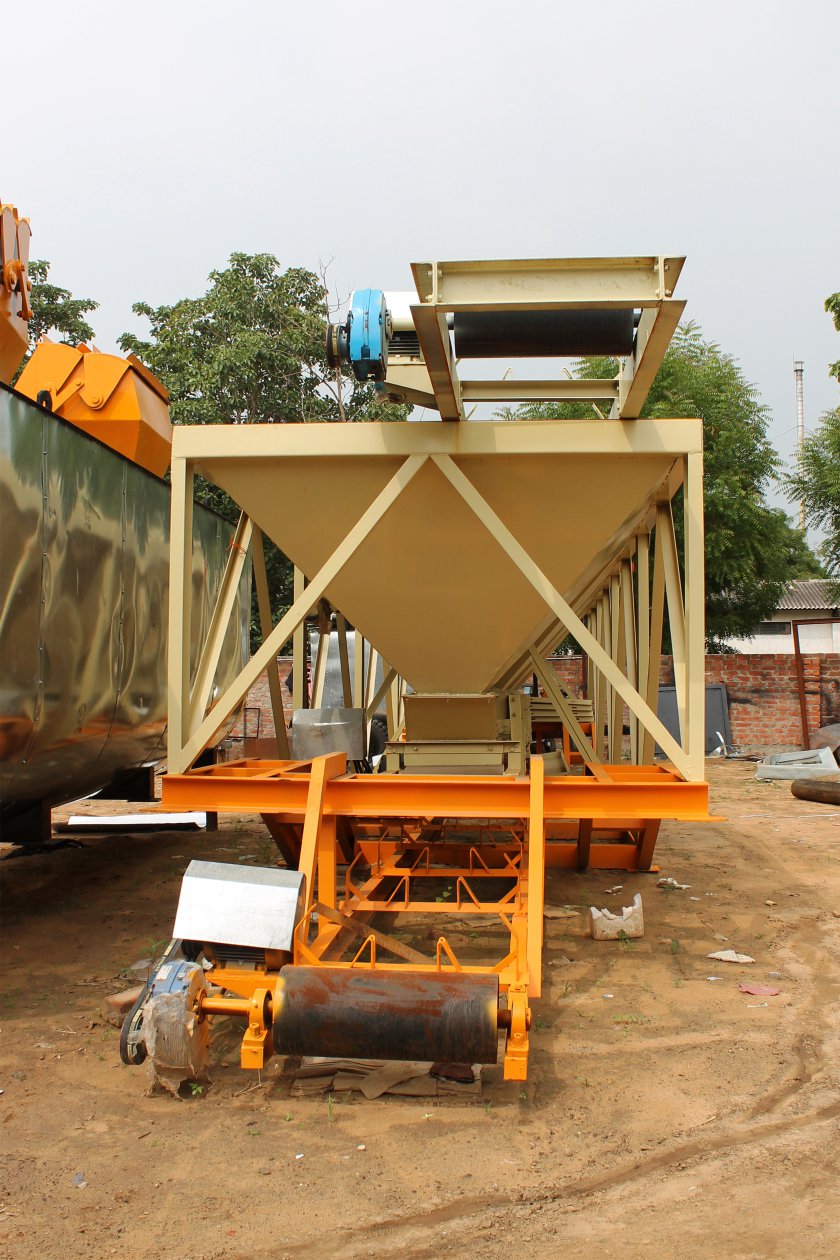

Overview And Working of Fourbin Feeder / cold Aggregate Feeder

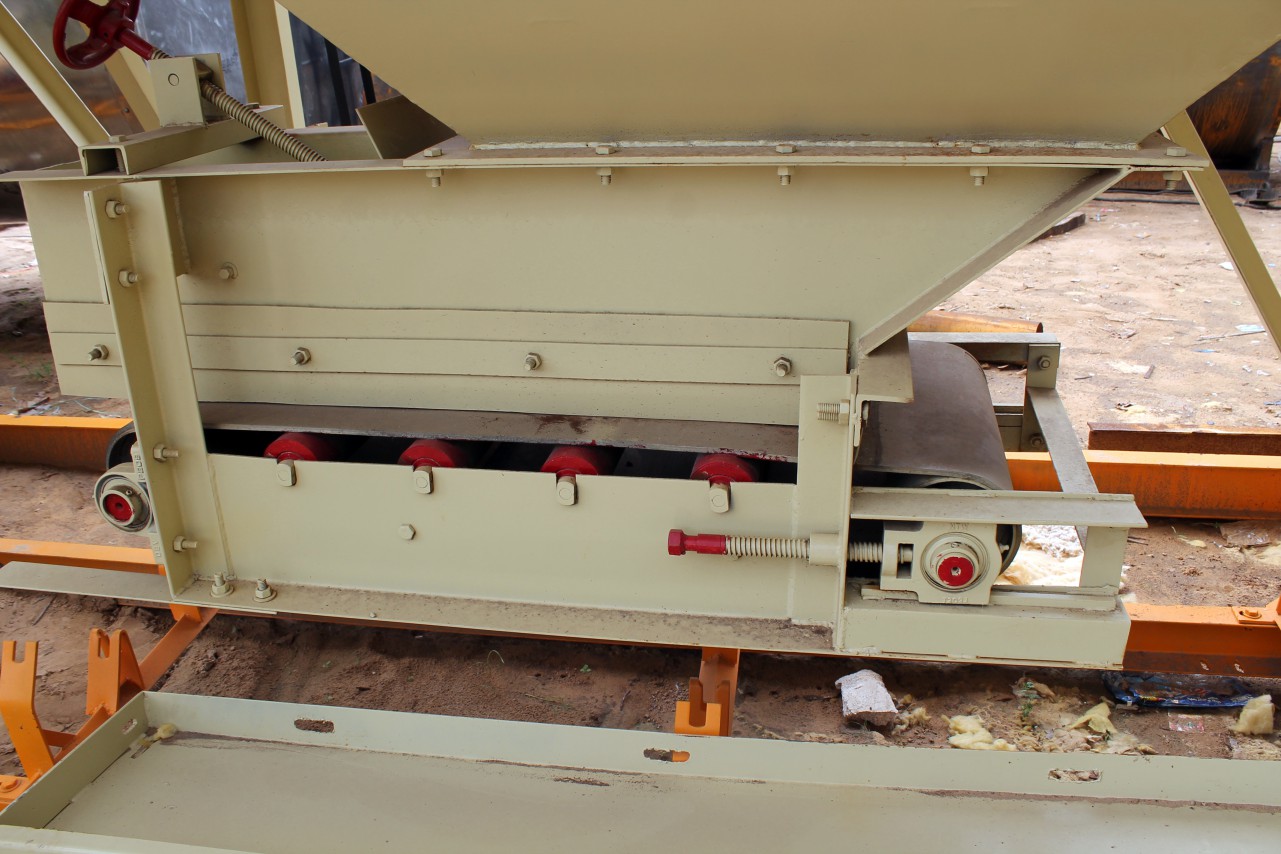

  • A radial gate (easily operatable by a hand wheel) and an auxiliary belt feeder driven by a geared motor type box series gear box and a AC motor is fitted on Each of 4-bins of our cold Aggregate Feeder.
  • Each bin has variable speed. The control panel synchronizes the speed of the belts to give optimum output. Special adjustable rubber borders under all the bins to prevent leakage of aggregate. Storage capacity of each Bin ranges from 10 tons to 20 tons.
  • Gate opening ones are set as par aggregate size. After that According to desired set percentage of aggregate gradation in mix design the flow of each size aggregate is regulated from control panel by their motor speed control in auto mode.
  • In our feeder, side rubber skirt on auxiliary feeders prevents material spillage and closely spaced straight rollers helps to prolong belt life. A bin vibrator provided on dust bin wall ensures easy down flow of dust when wet due to moisture

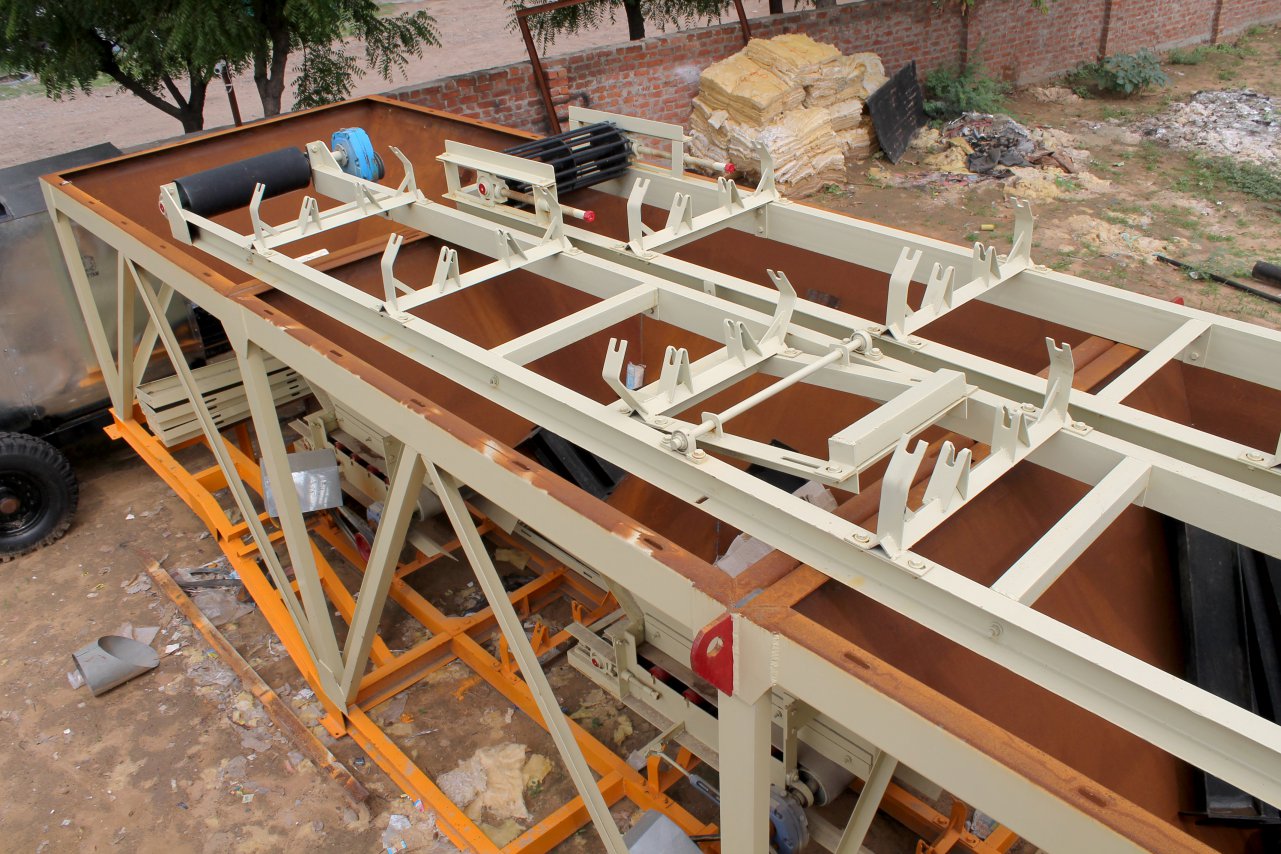

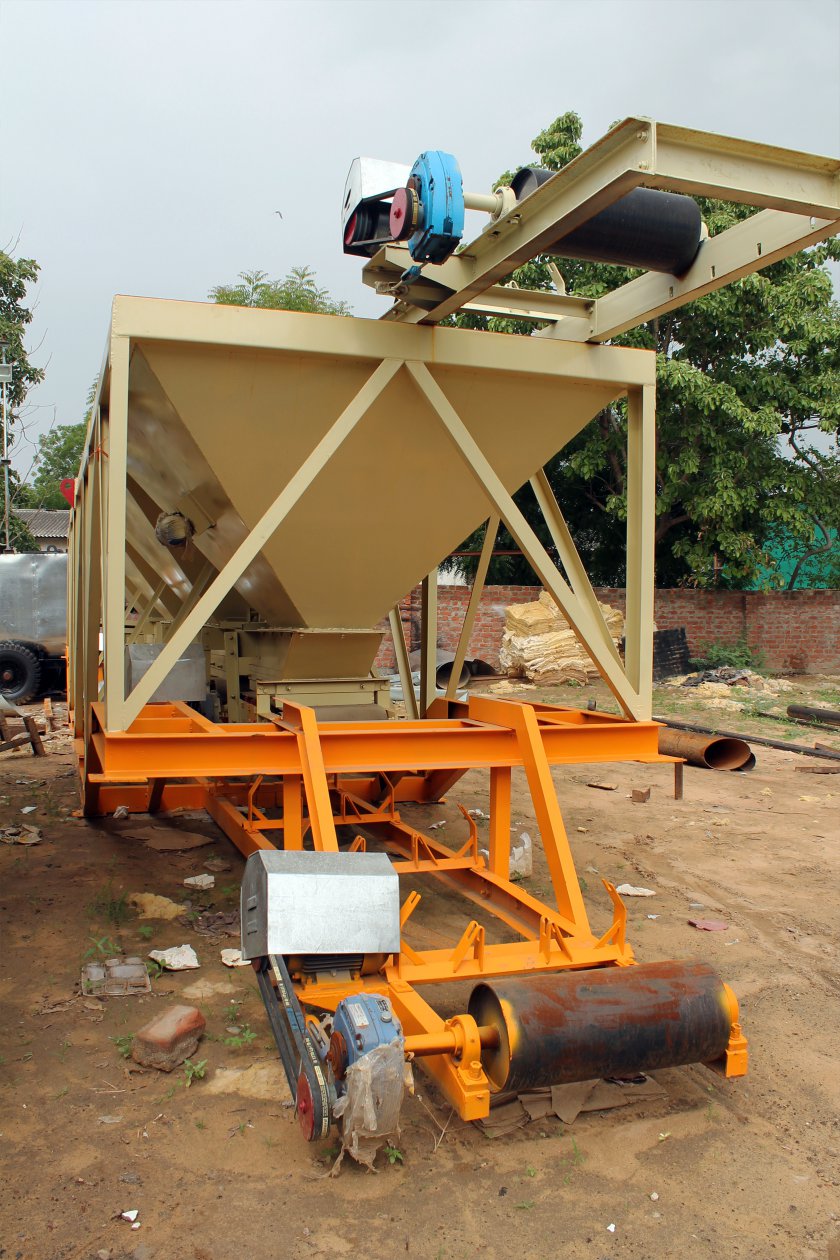

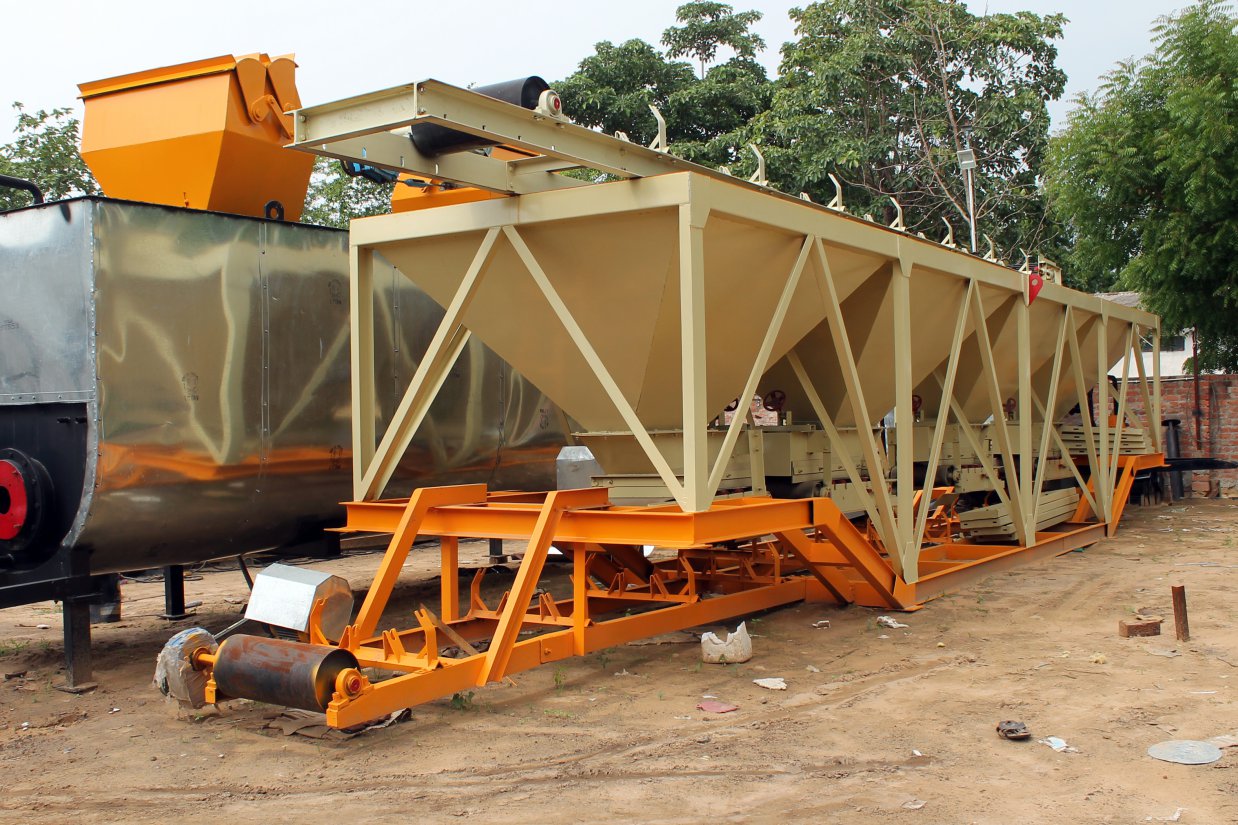

  • Gathering conveyor collects all four size aggregates from their respective aux, feeders. Then it transfers the same on to single deck vibrating screen which rejects over sizes. A scrapper fitted at discharge and bottom of gathering conveyor keeps the belt neat and clean when wet dust sticks the belt
