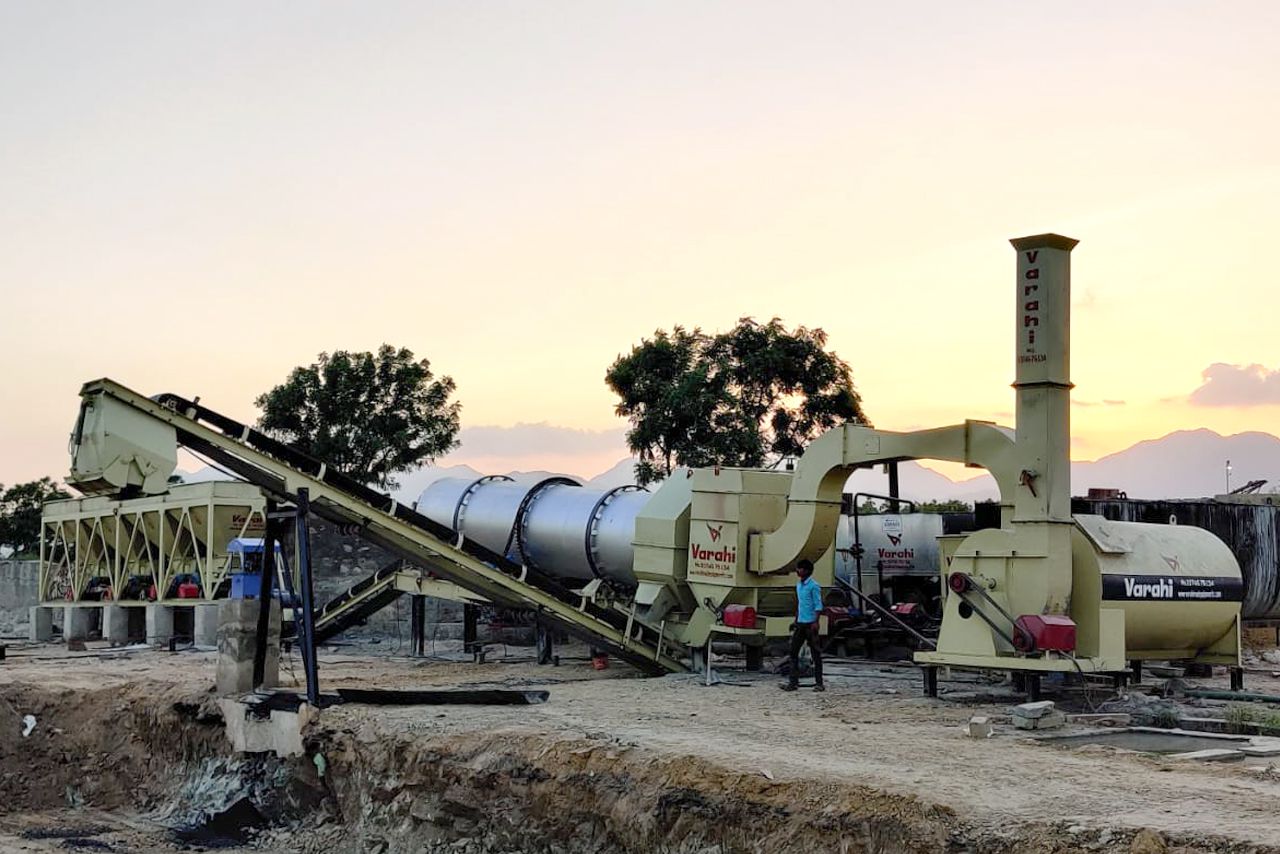

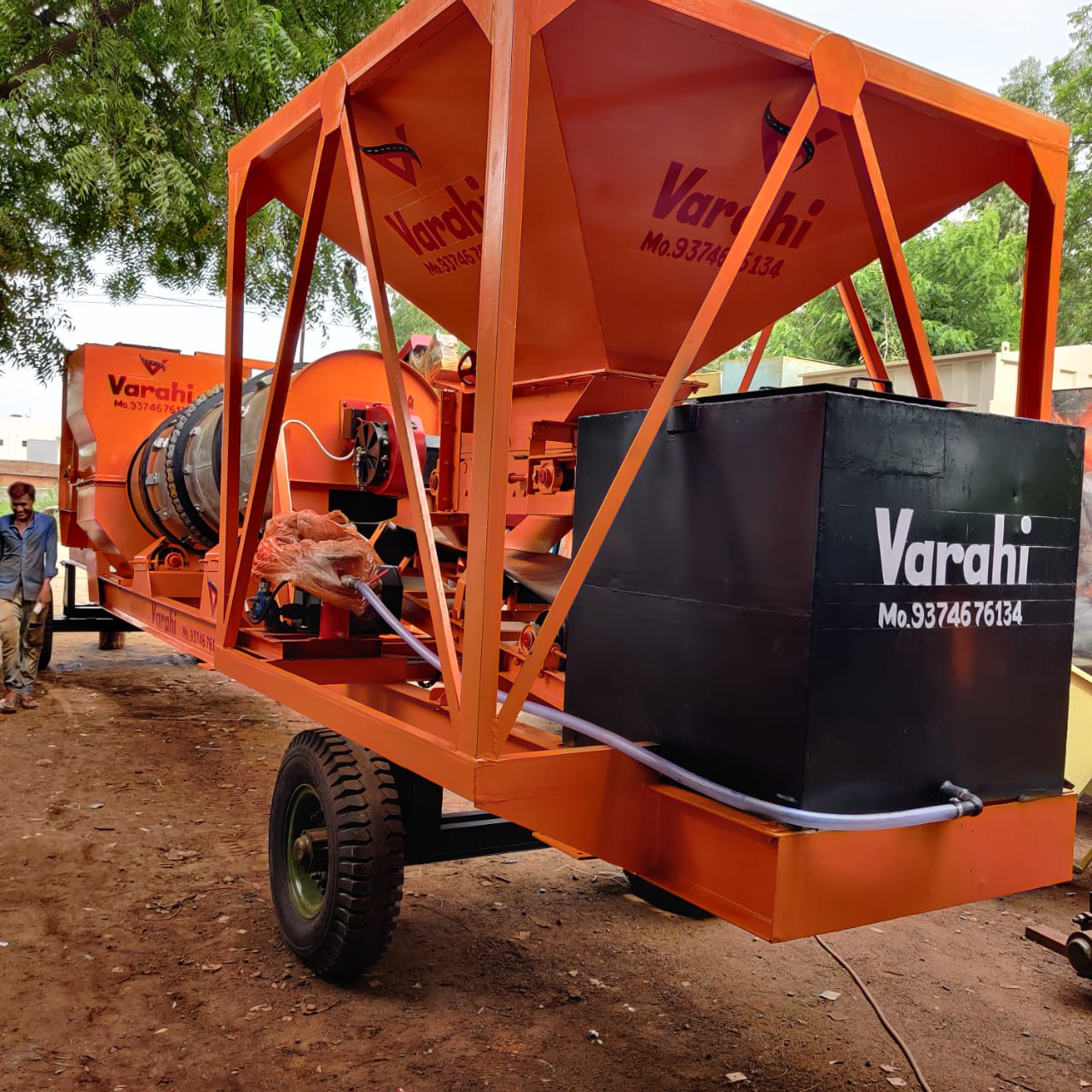

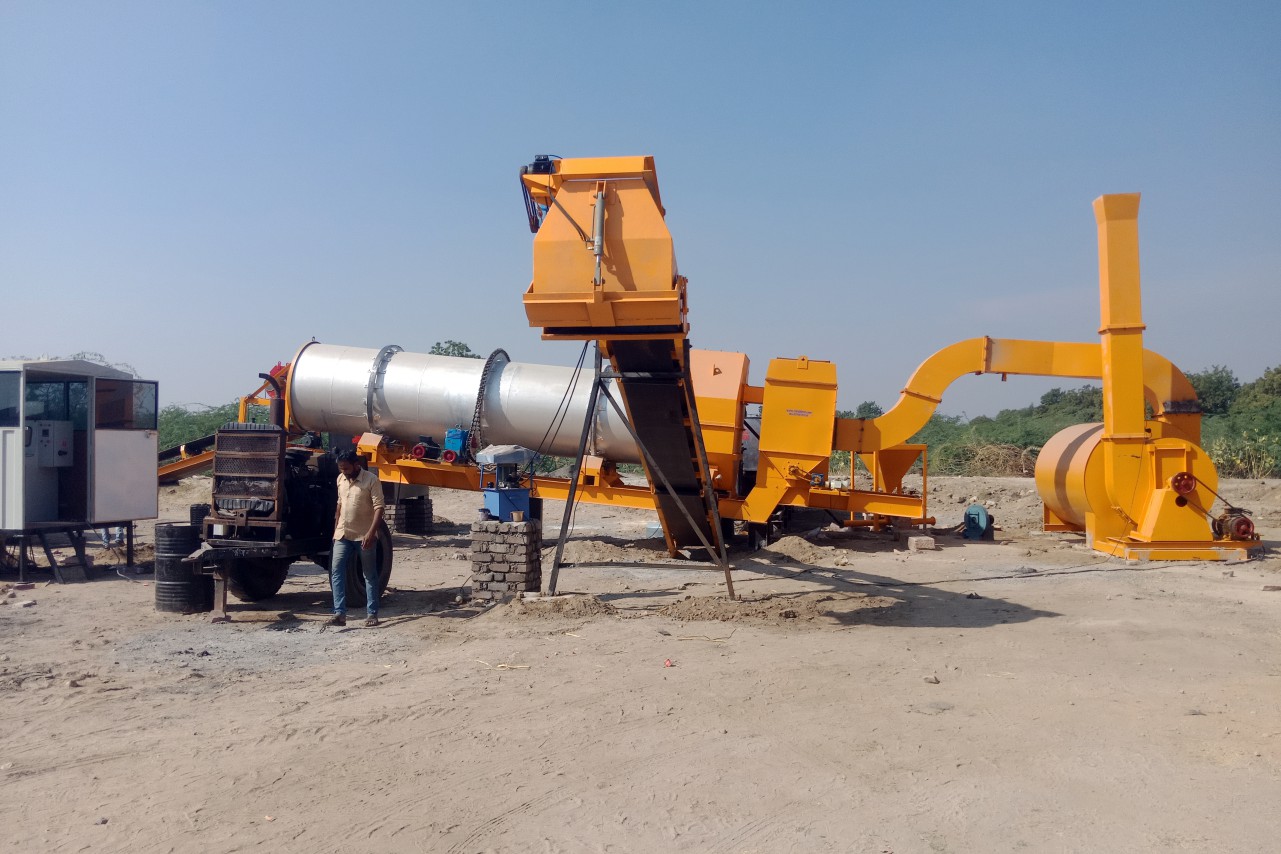

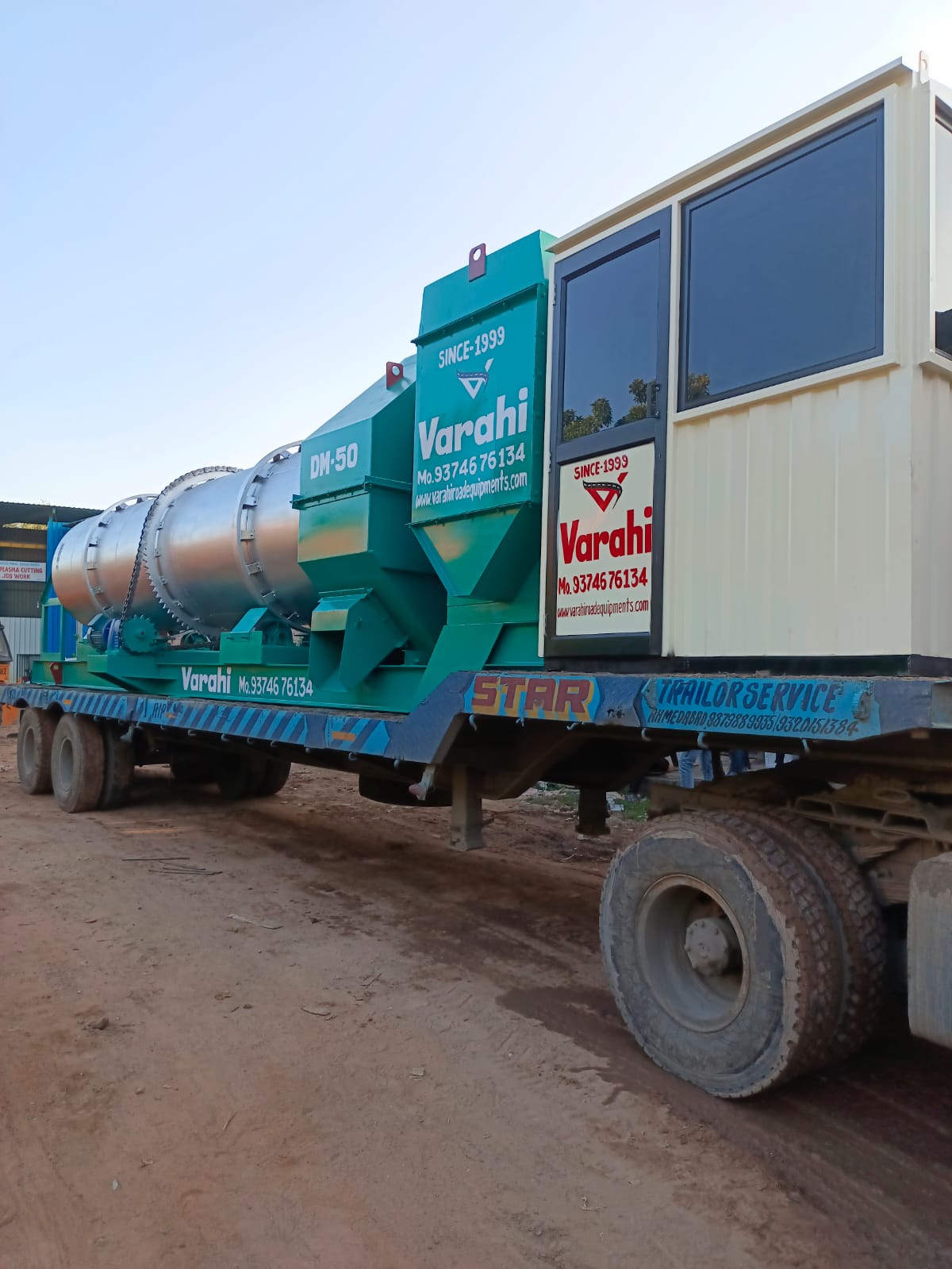

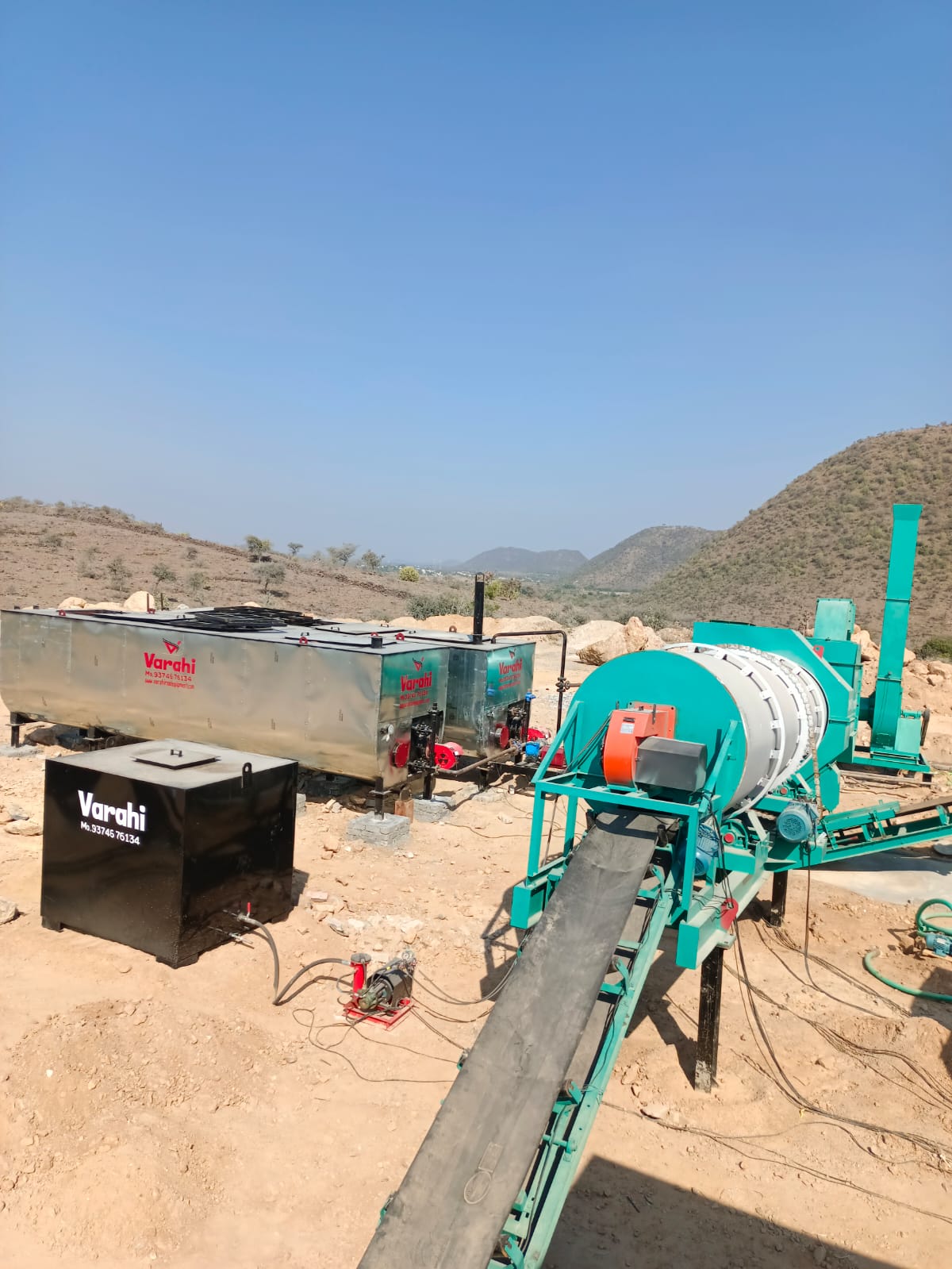

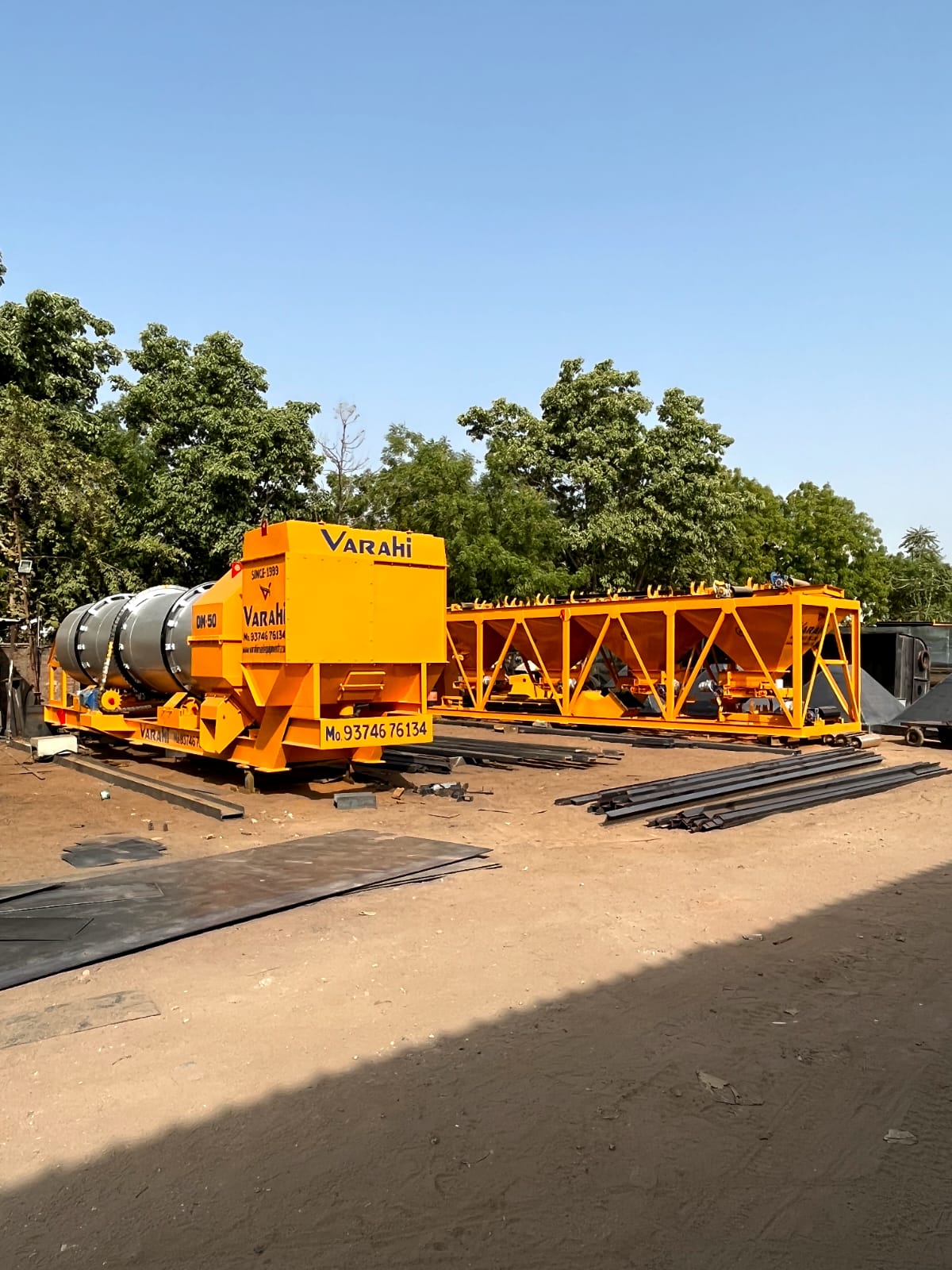

Asphalt Drum Mix plant from Varahi Road Equipments is a trusted product for Top-notch performance, Lower operating costs, High quality, and Superb after-sale service thus productivity and profits of Customer Increases. All Units of Asphalt Drum Mix plant are of international quality standards.

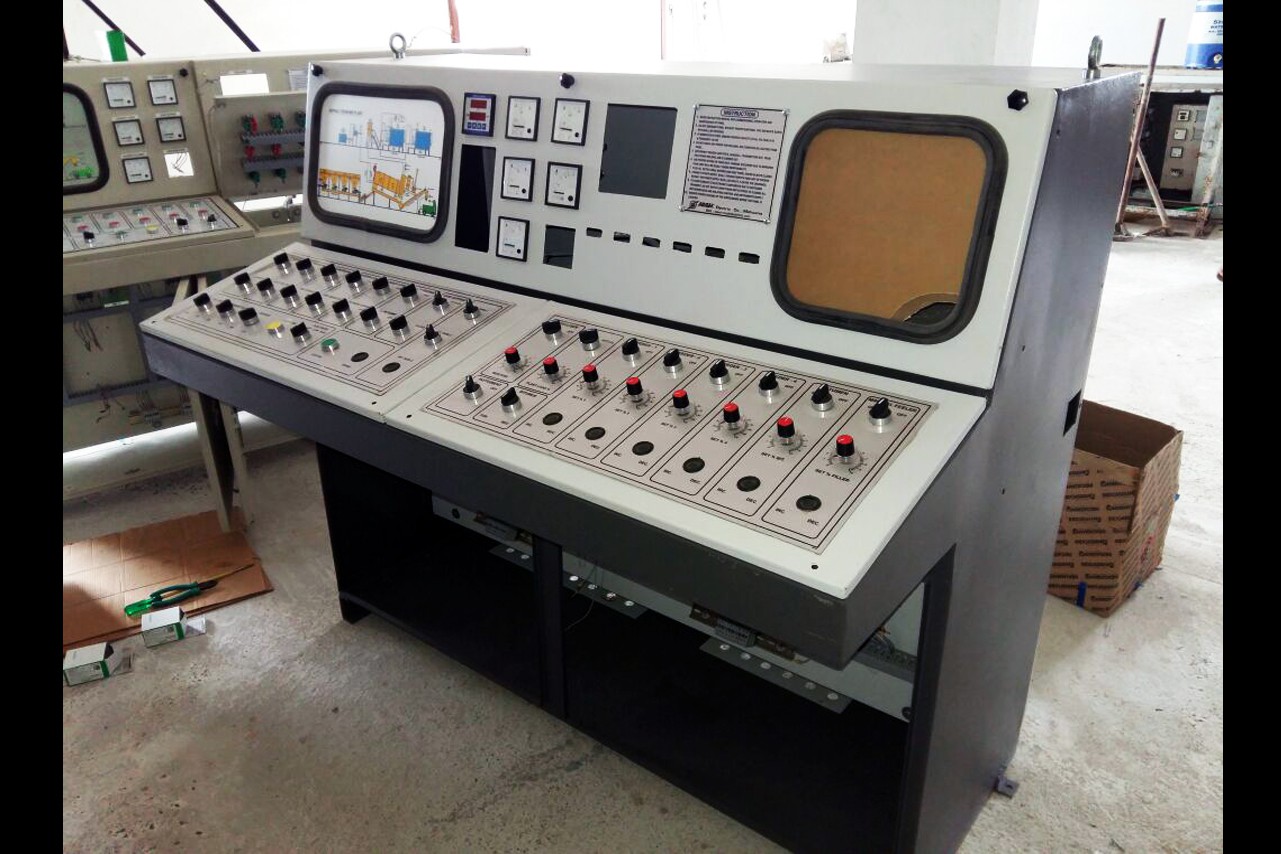

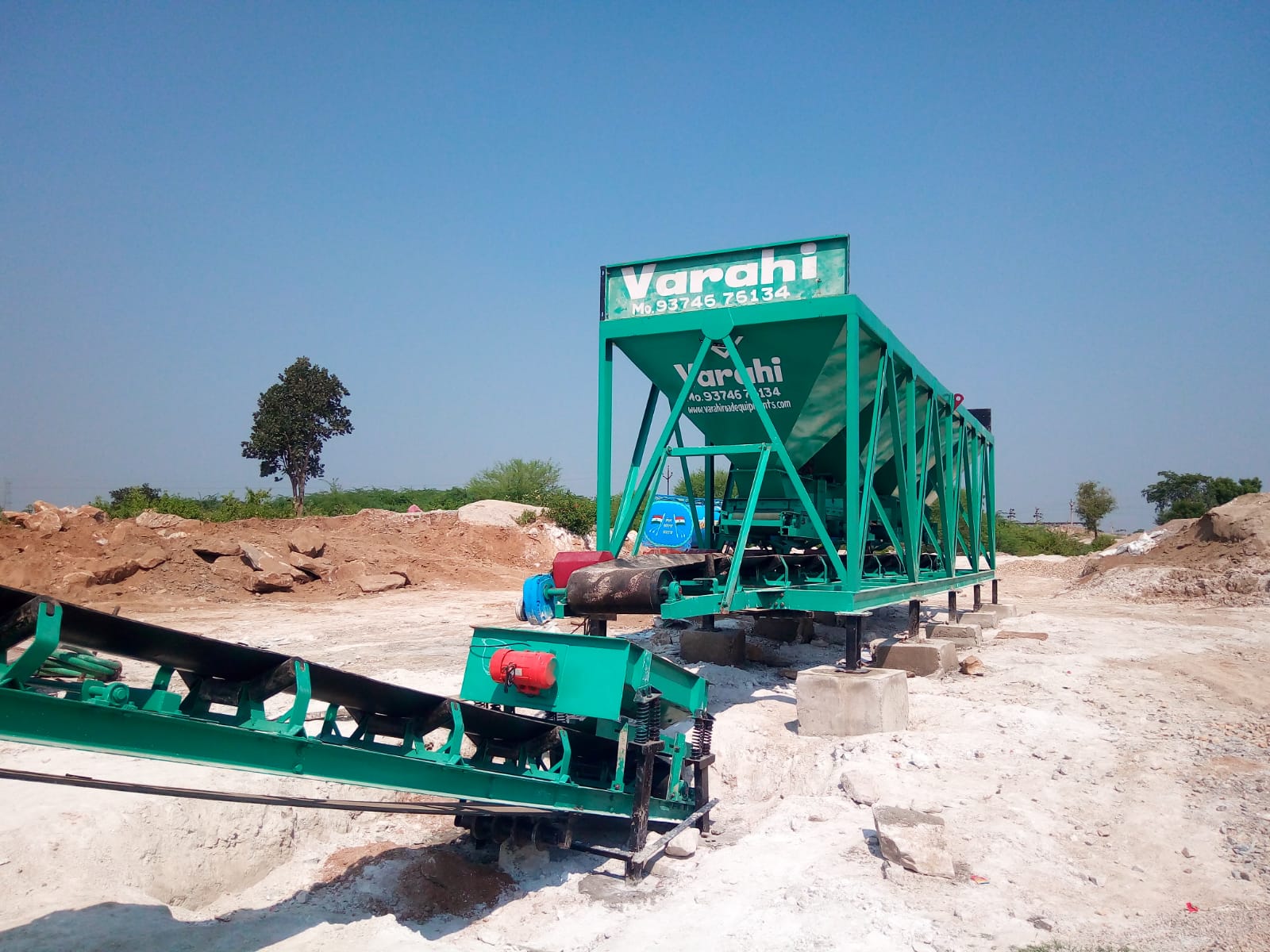

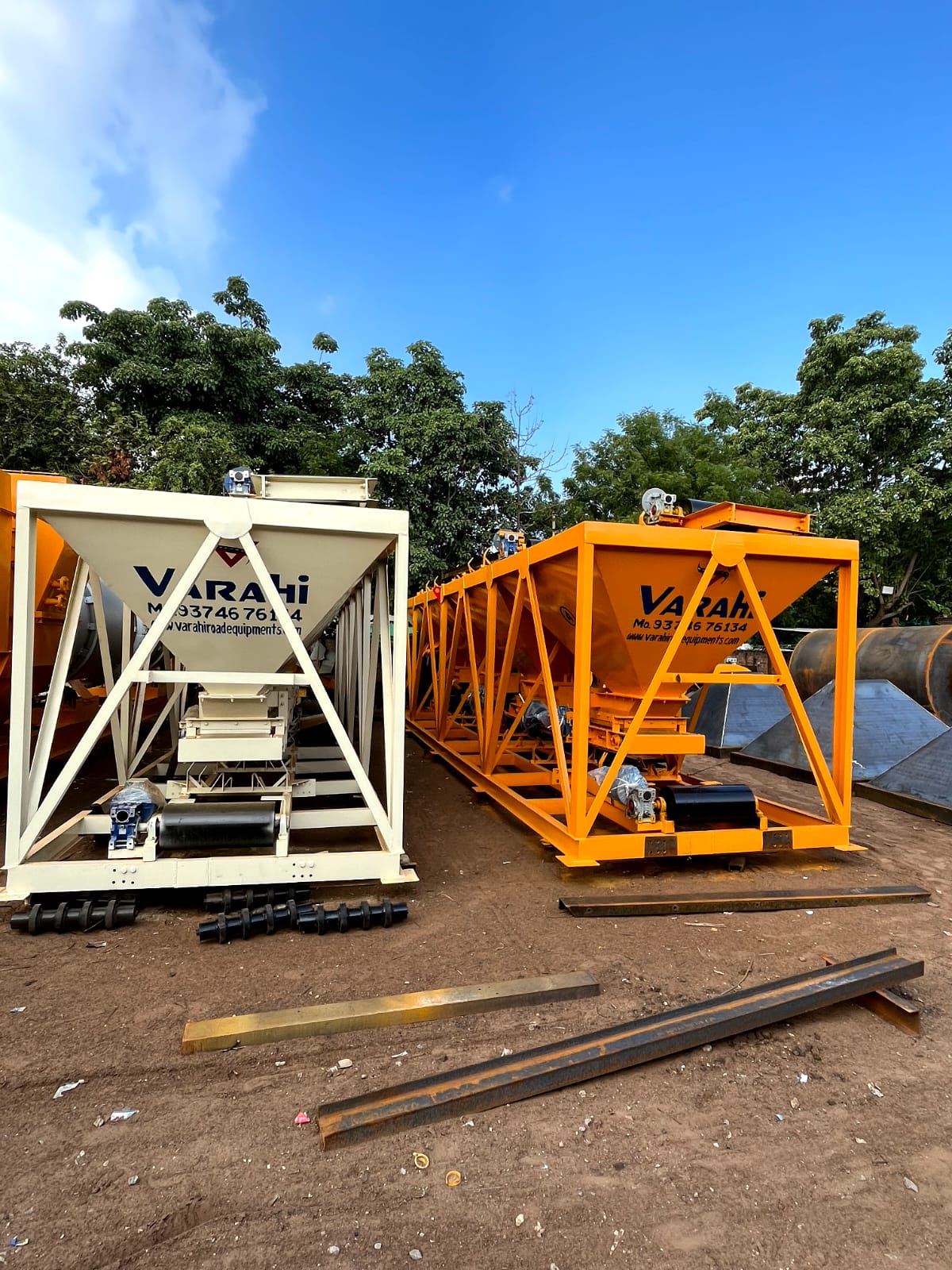

The bins have adjustable calibrated gate openings, no flow indicators in control panel for operator acknowledgements and variable speed feeder drives together offer a total proportional control, greater flexibility and accuracy of operations. The bins are all-welded and modular in construction, permitting easy addition of bins to meet growing needs. Steep bin walls and the valley angles allow free flow of aggregates from the feeders minimizing hold up of materials in the corners and bridging with sticky aggregates.
Read More...

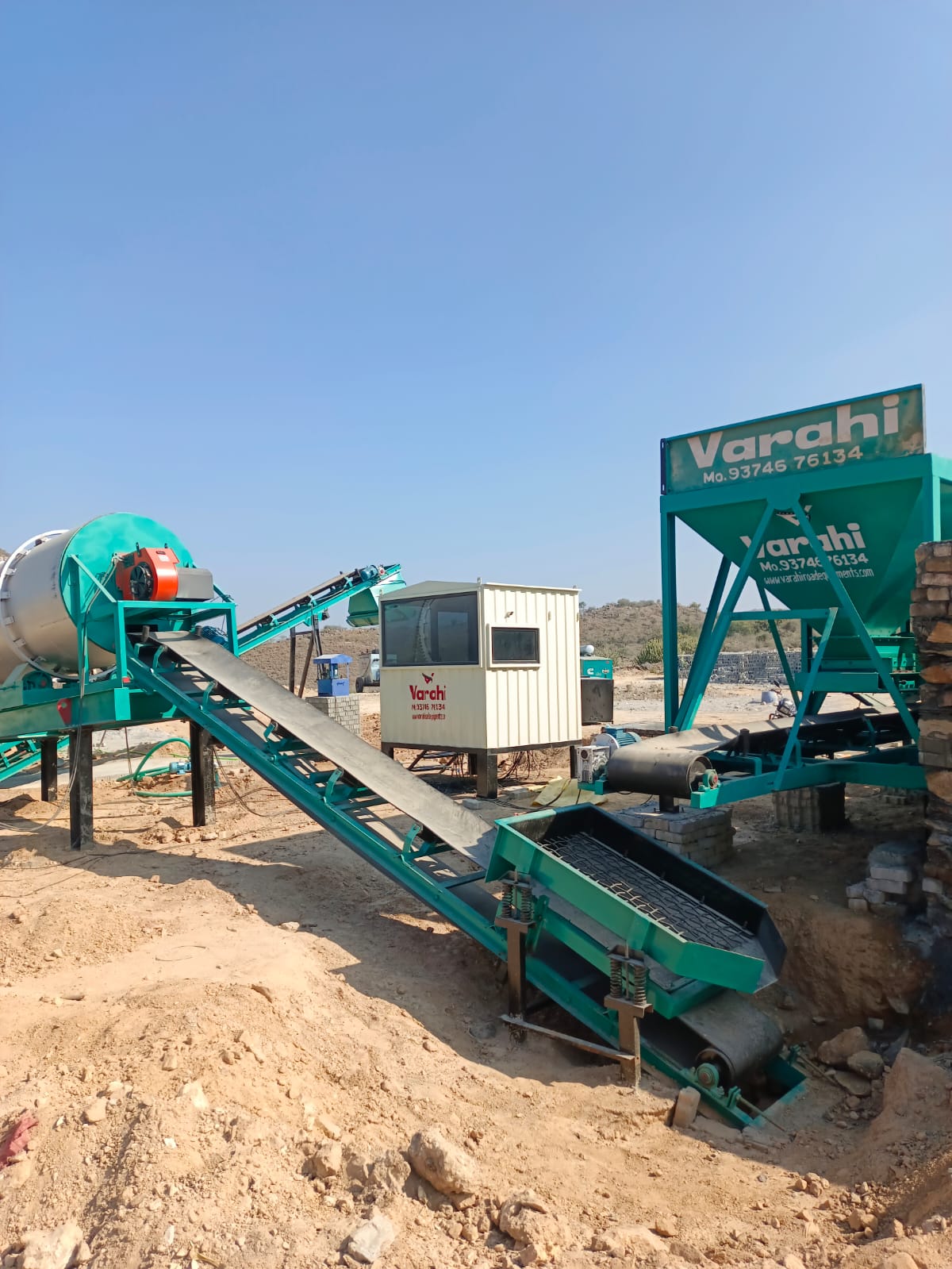

Single deck type vibrating screen removes oversize material and feeds the remaining material to charging the conveyor. We can use different sizes of a screen to remove oversize material for different kind of mixes.
High-speed slinger conveyor throws the cold wet aggregate into a drum. A load cell type belt weigher is mounted under a slinger belt to measure aggregate flow rate which is displayed digitally in Tons/hour on the control panel. The aggregates which are received from the gathering conveyor goes into the dryer Drum unit which is equipped with load Cell for continuous monitoring of weight.

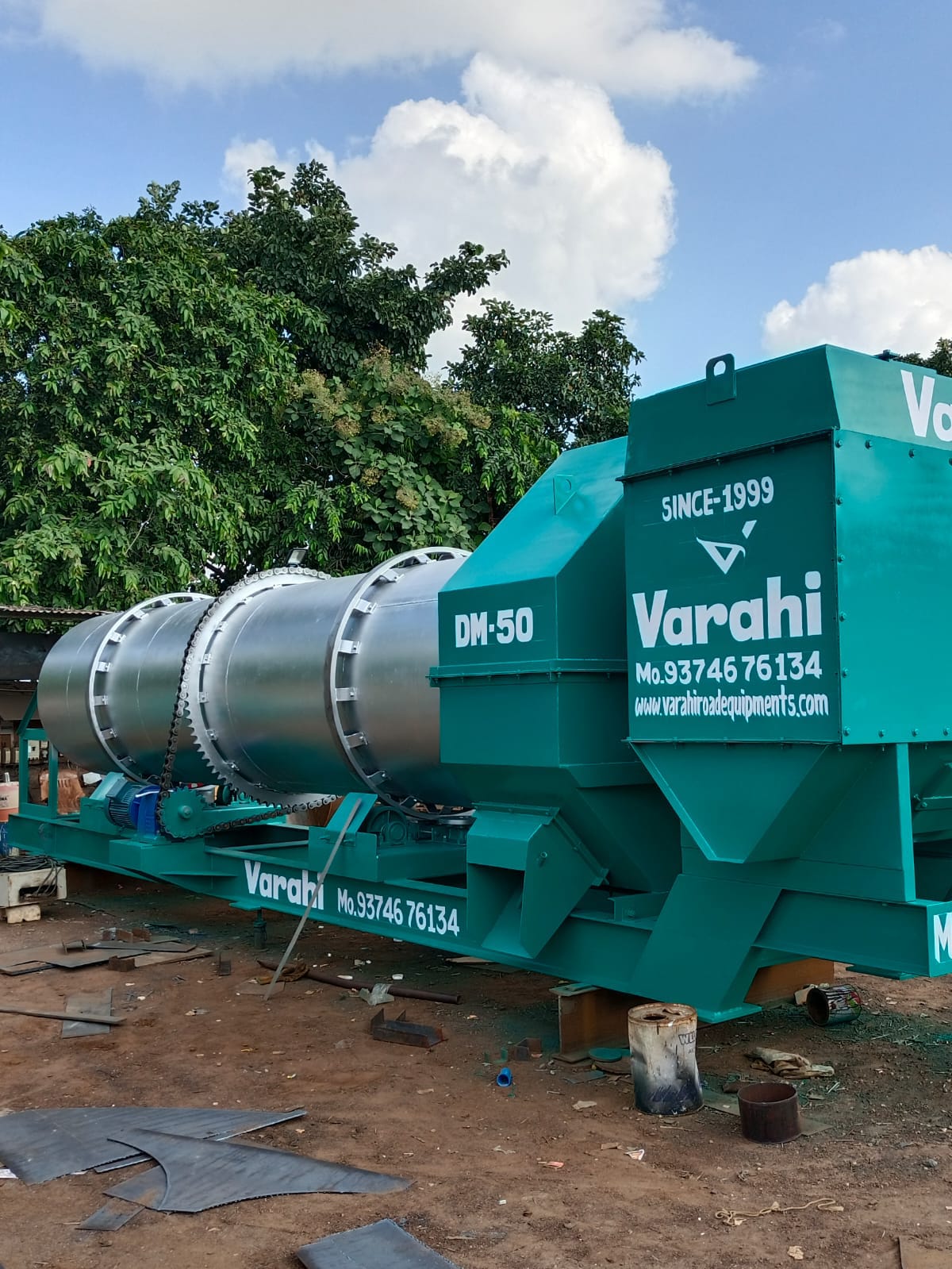

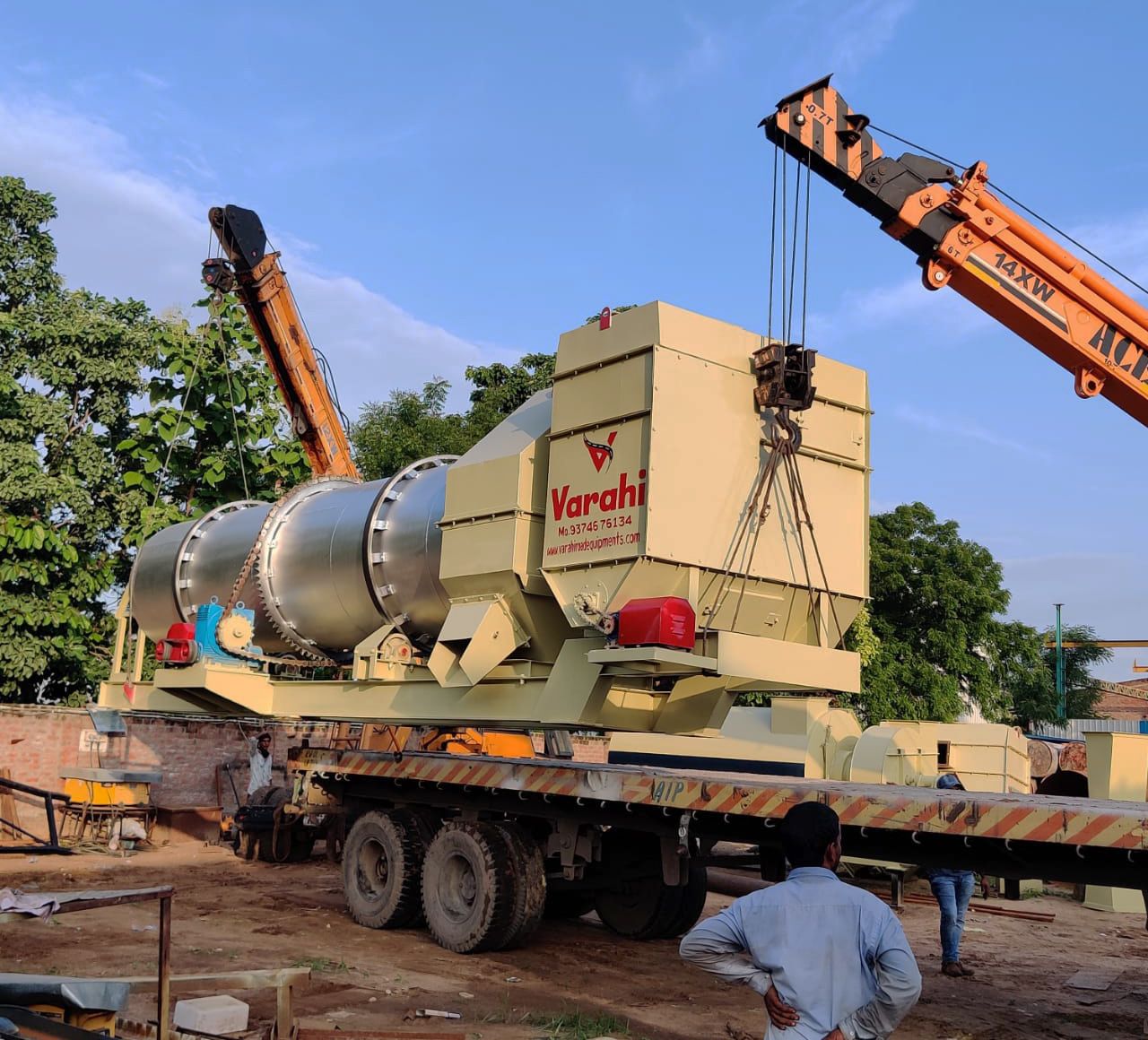

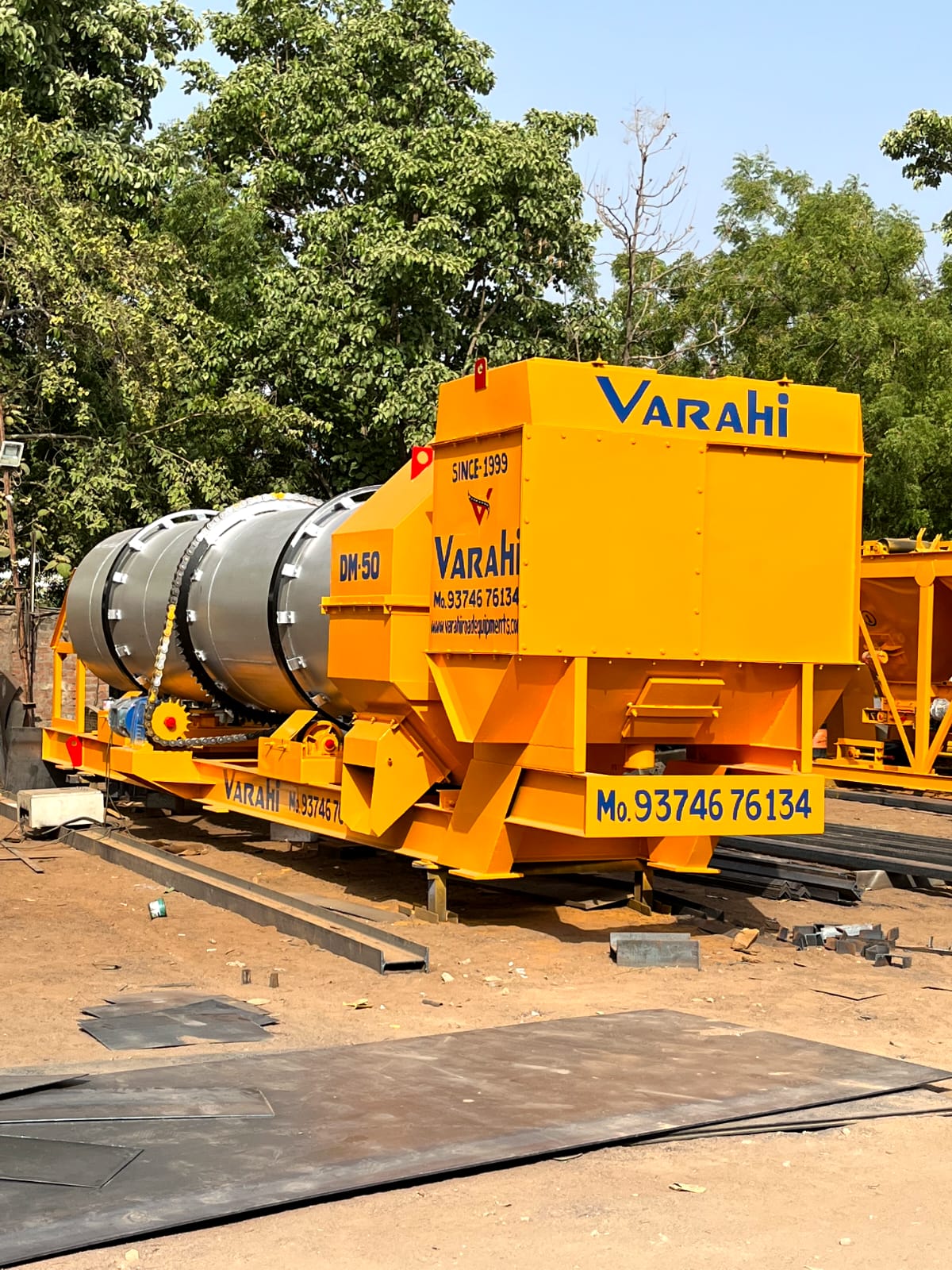

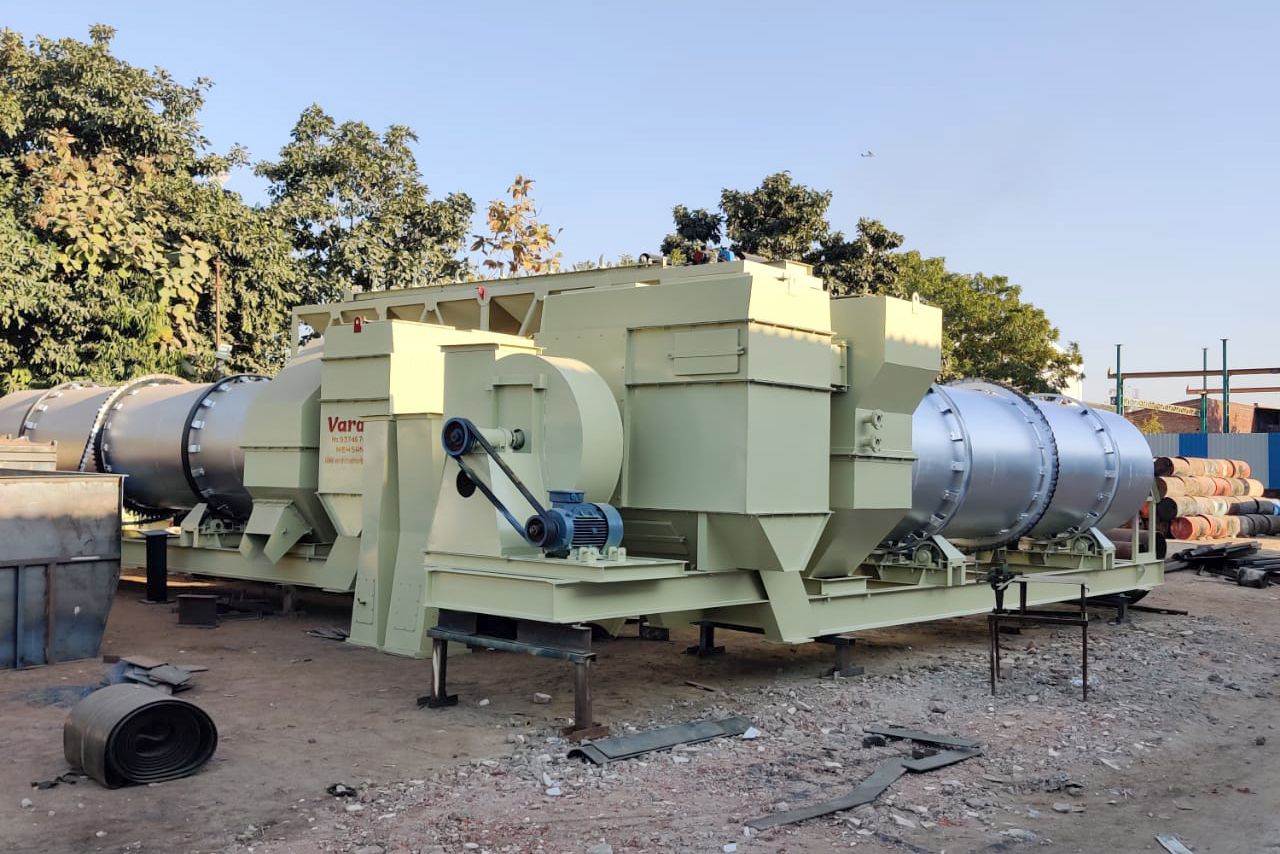

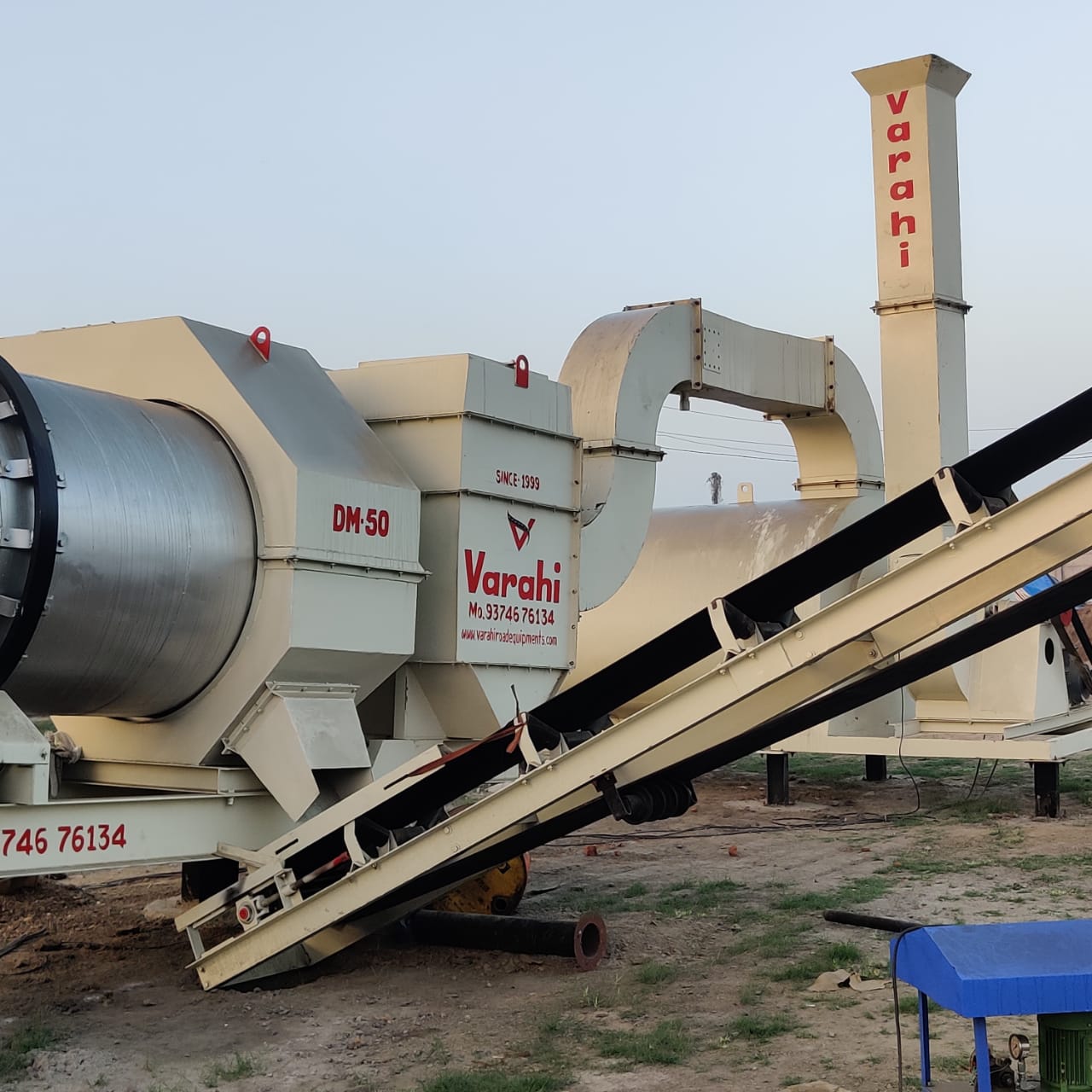

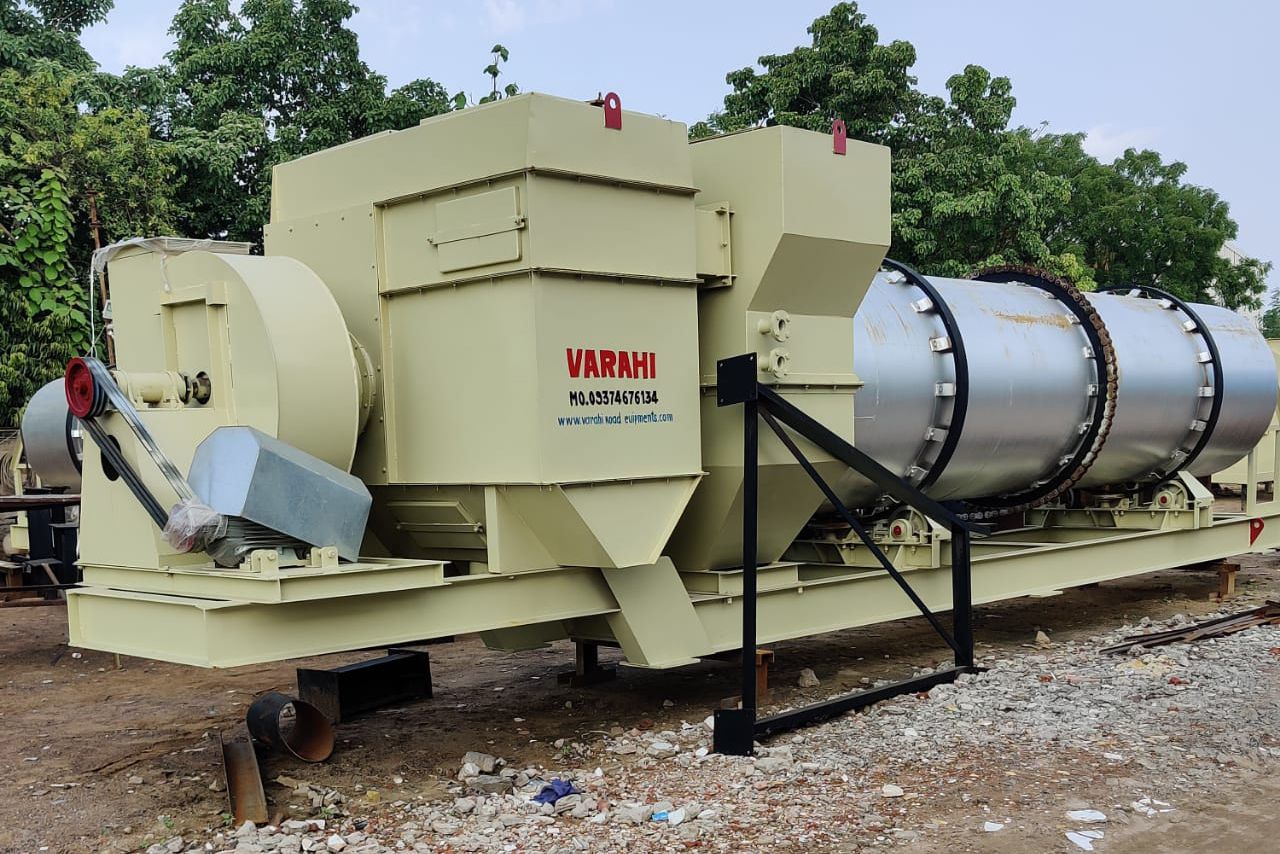

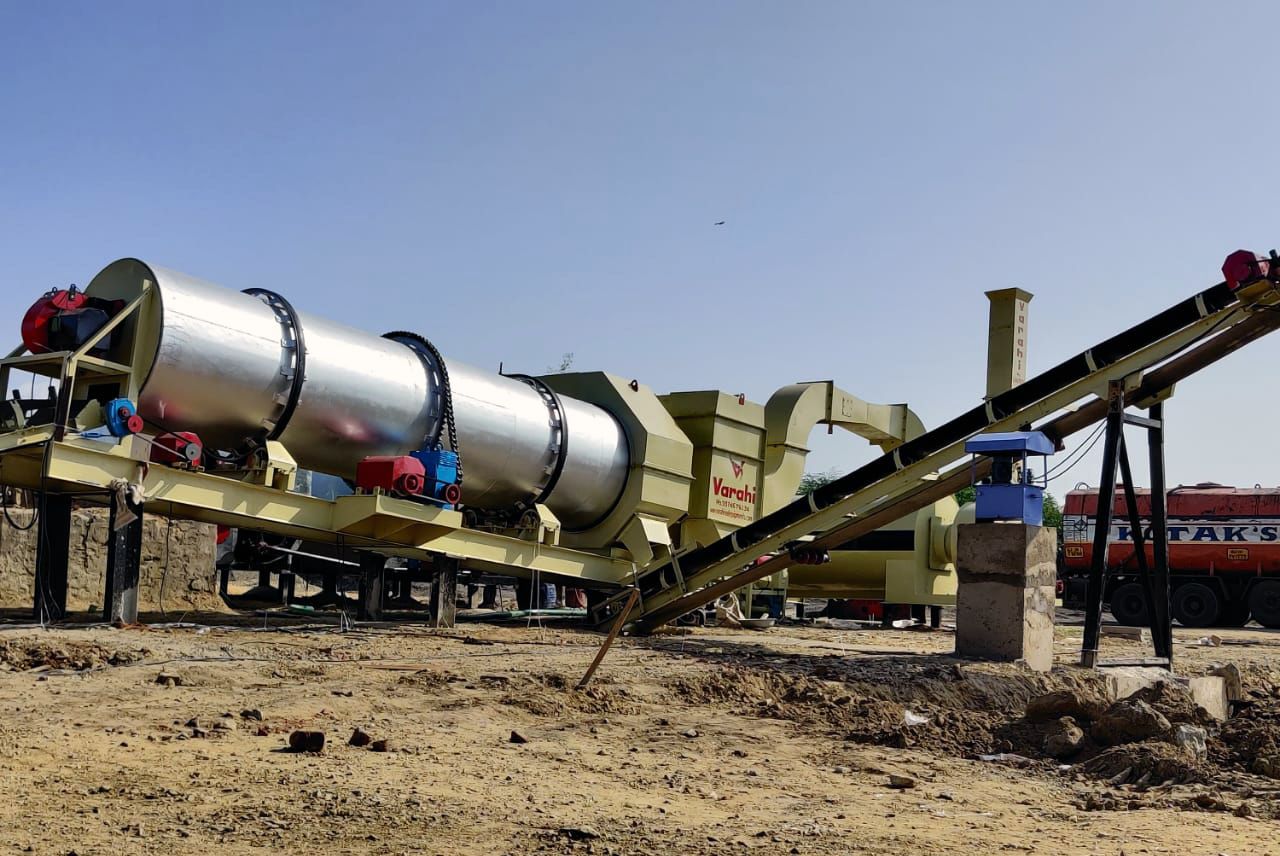

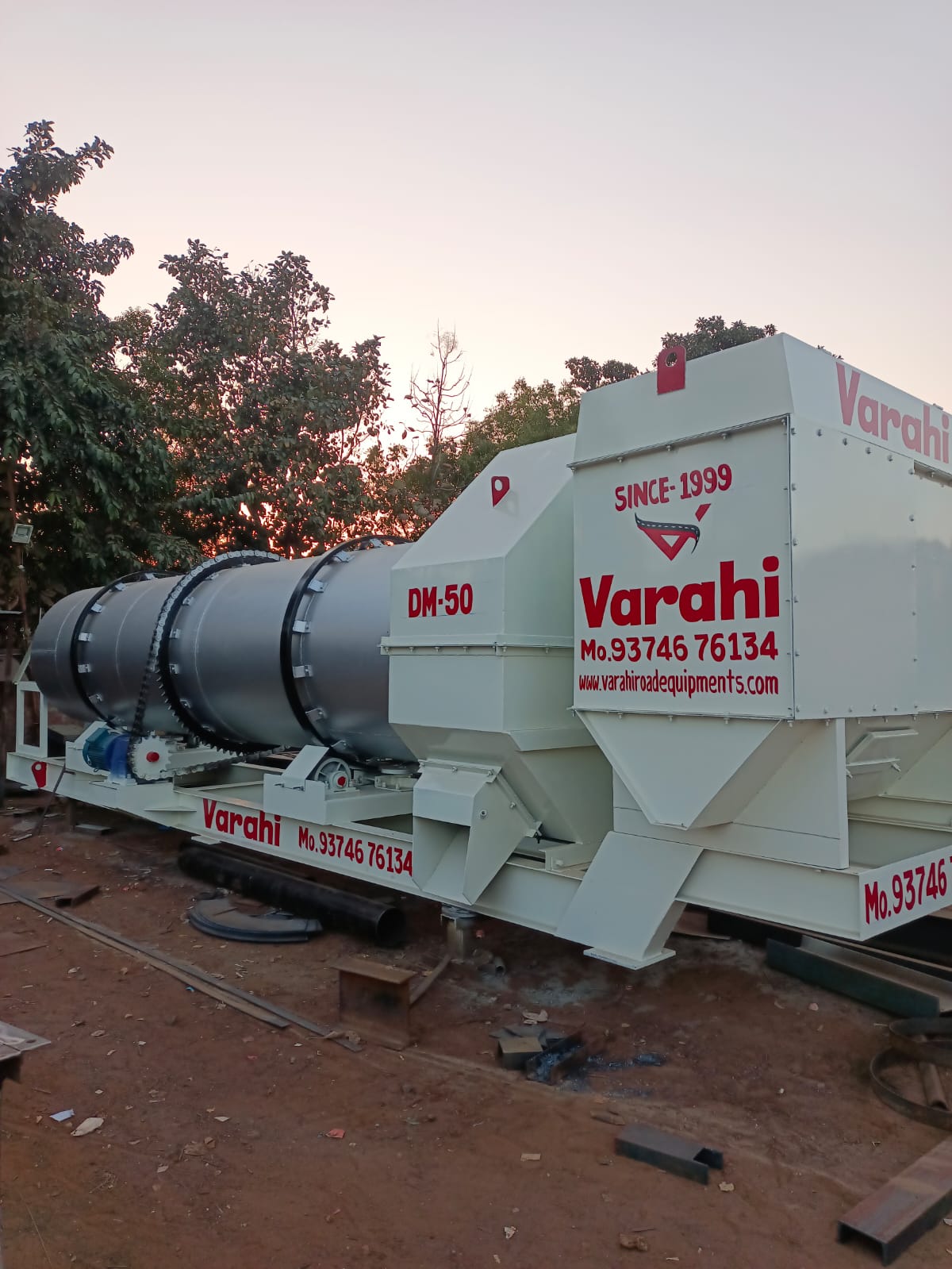

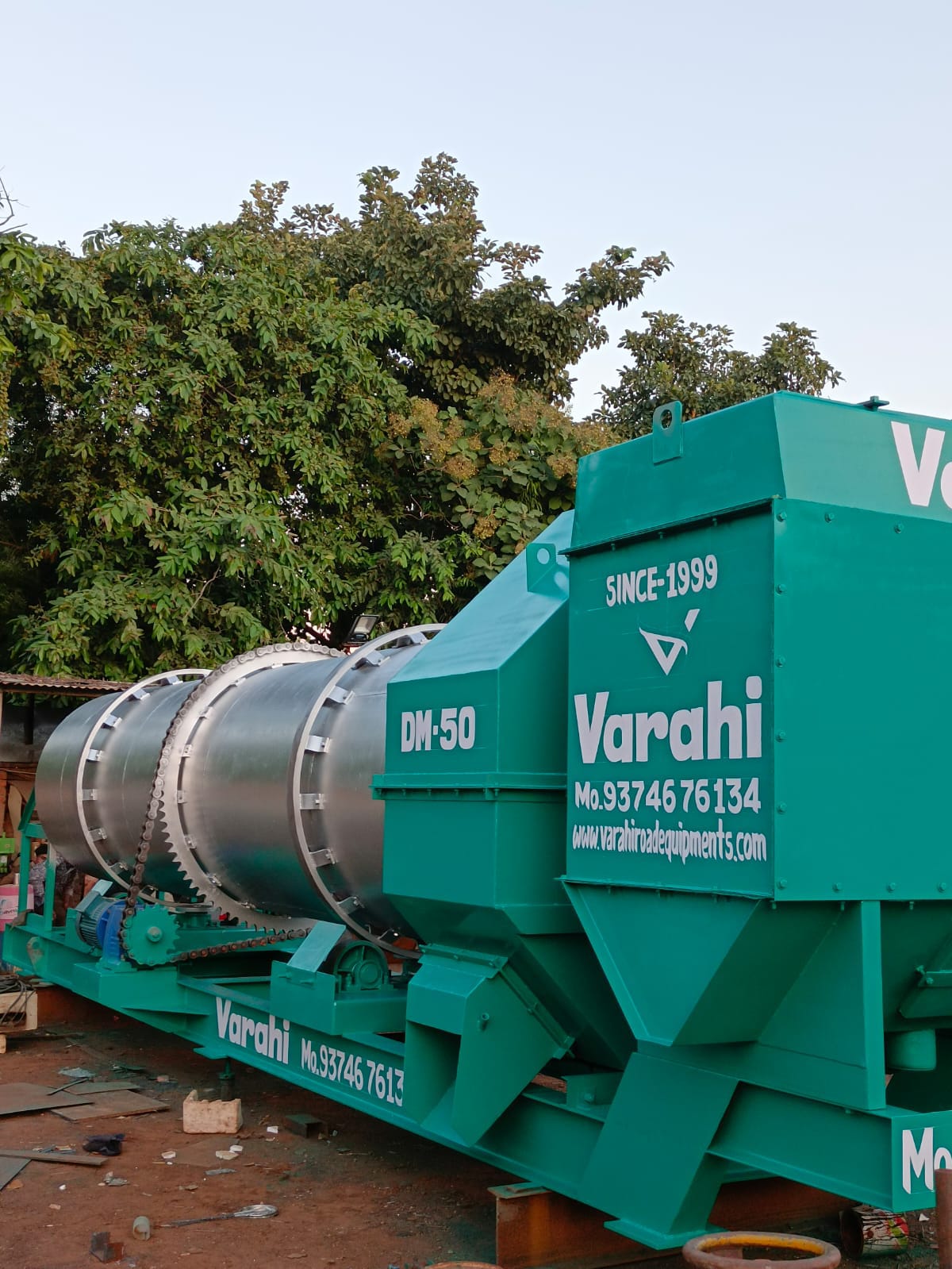

Thermo Drum Unit is a Cylindrical shaped dryer drum supported on 4-trunnion rollers by 2 steel tyres is driven by a chain & wormgear box & an AC motor. It receives weighed cold aggregates from slinger conveyor at one end & discharges hot asphalt mix on to a load out conveyor from other end. Wet aggregates is heated and dryed using a high pressure jet burner fitted at feeding end which fires high temprature flame into the drum.

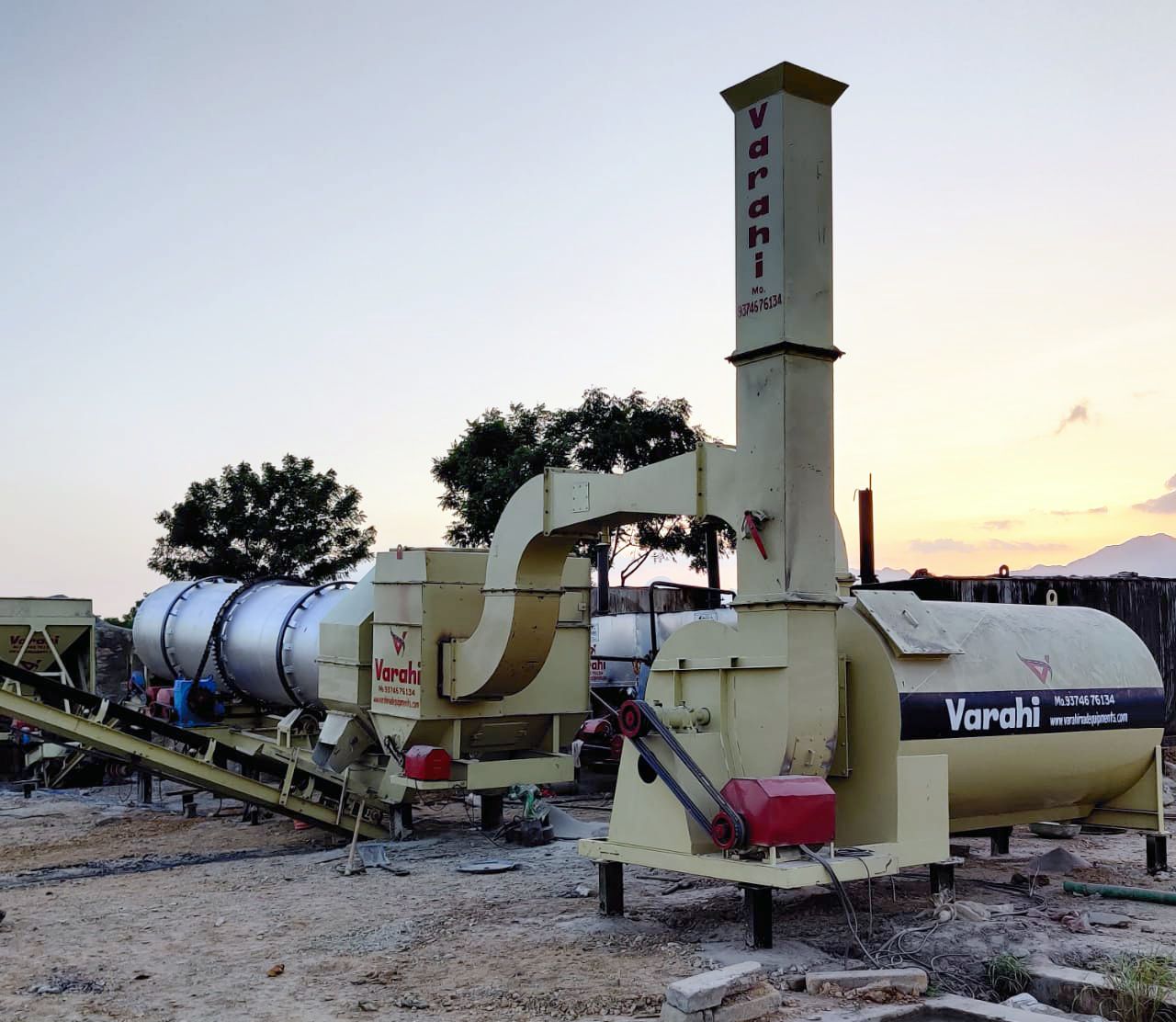

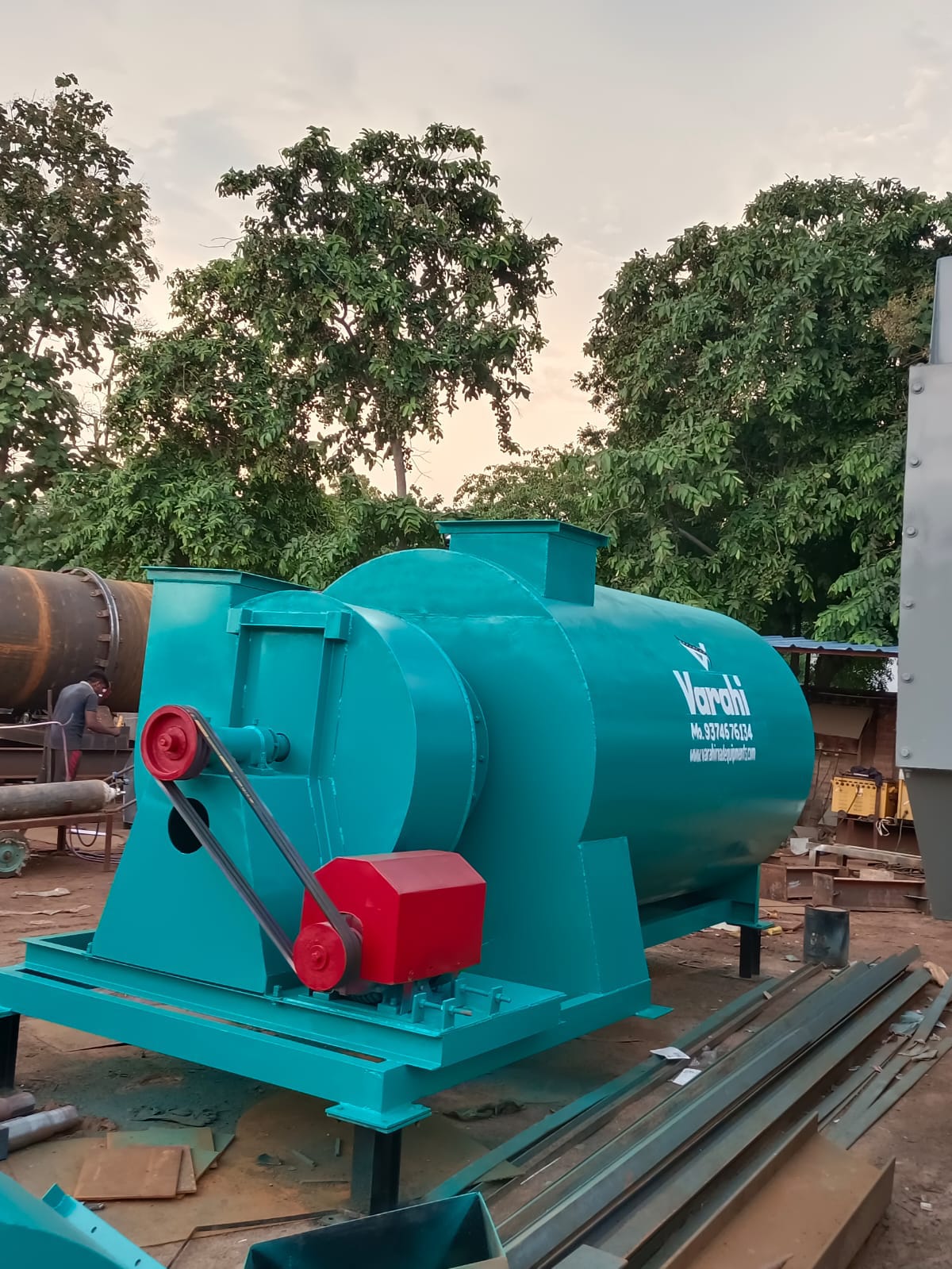

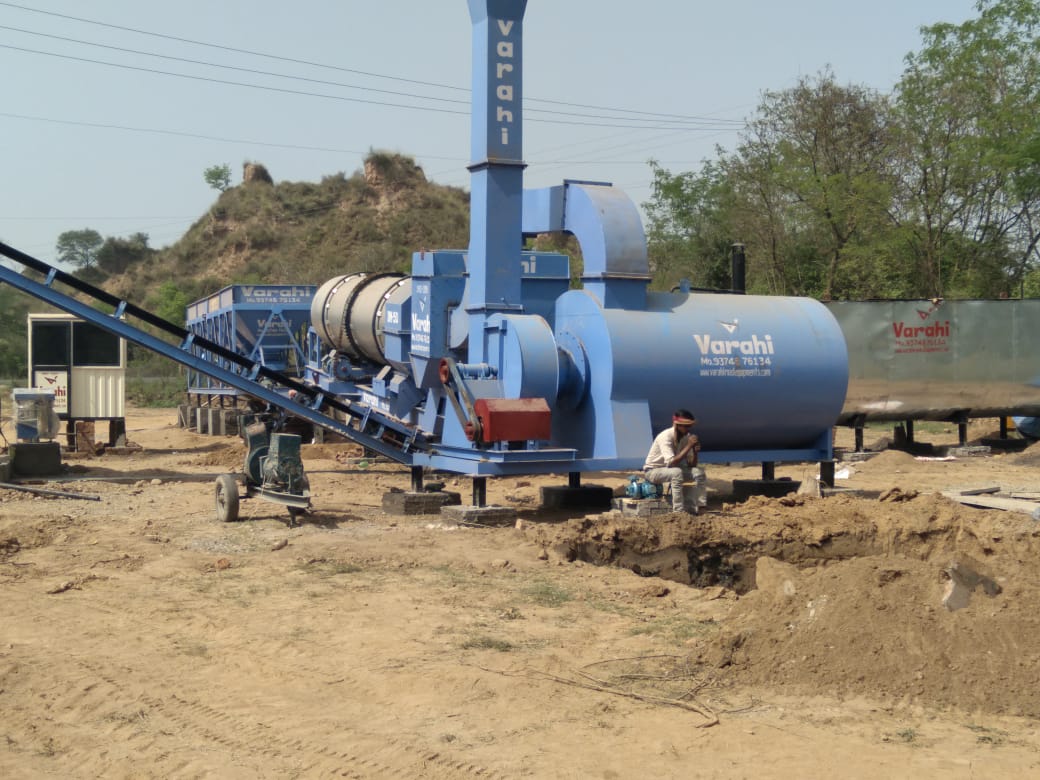

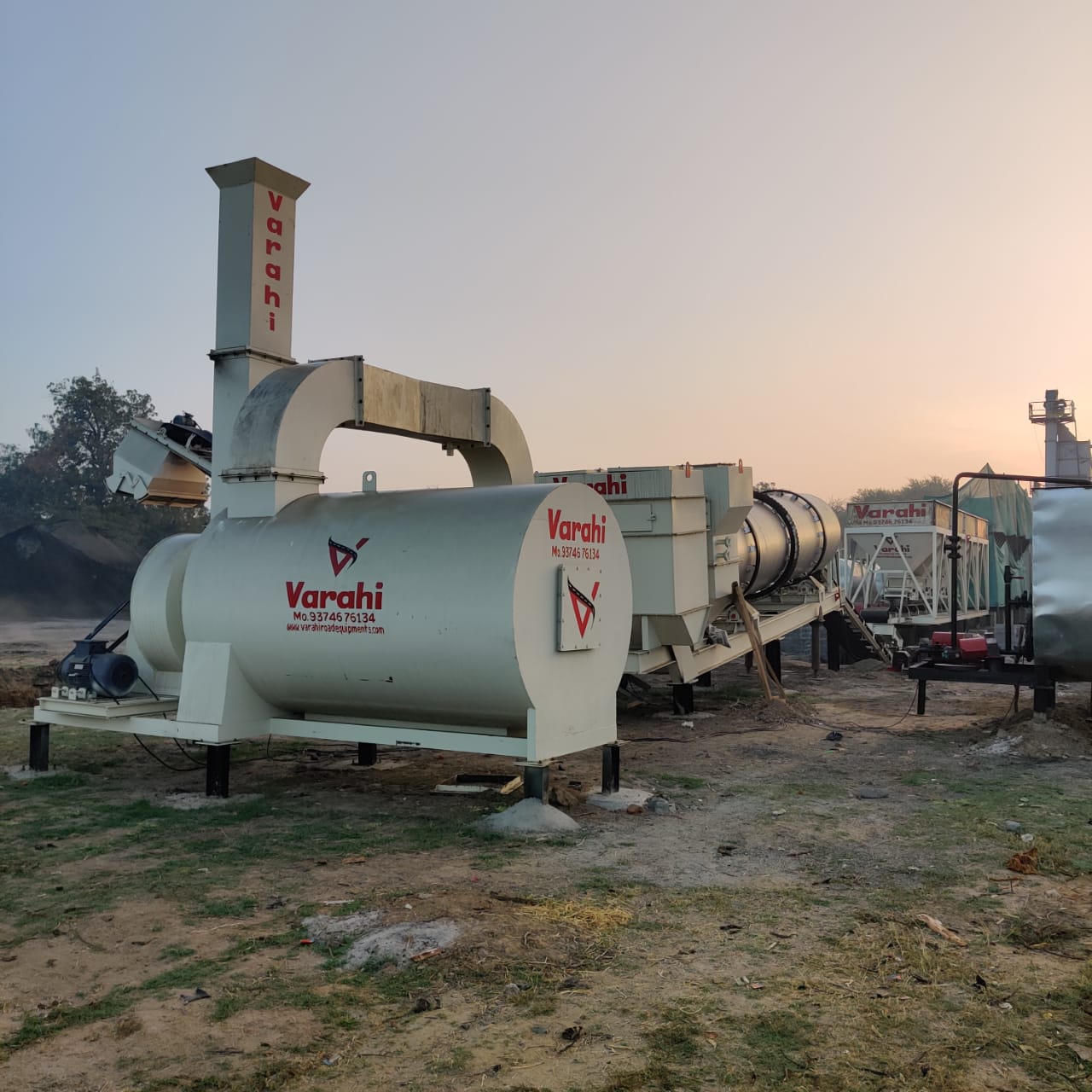

Read More...Pollution Control Unit is a venturi type wet dust collector which is directly connected to multicone cyclones. The dust which is lifted from thermo-drum unit is first separated in multicone cyclone unit and then partially clean exhaust gases are passed through venture of this wet dust collectors, where water is sprayed by pump & fine nozzles. Due to this, fine water mist is created & all fine dust particles get completely wet which are then passed through a separator tank. Here dust slurry flows towards bottom of separator and is then drained out to settling ponds.
Read More...

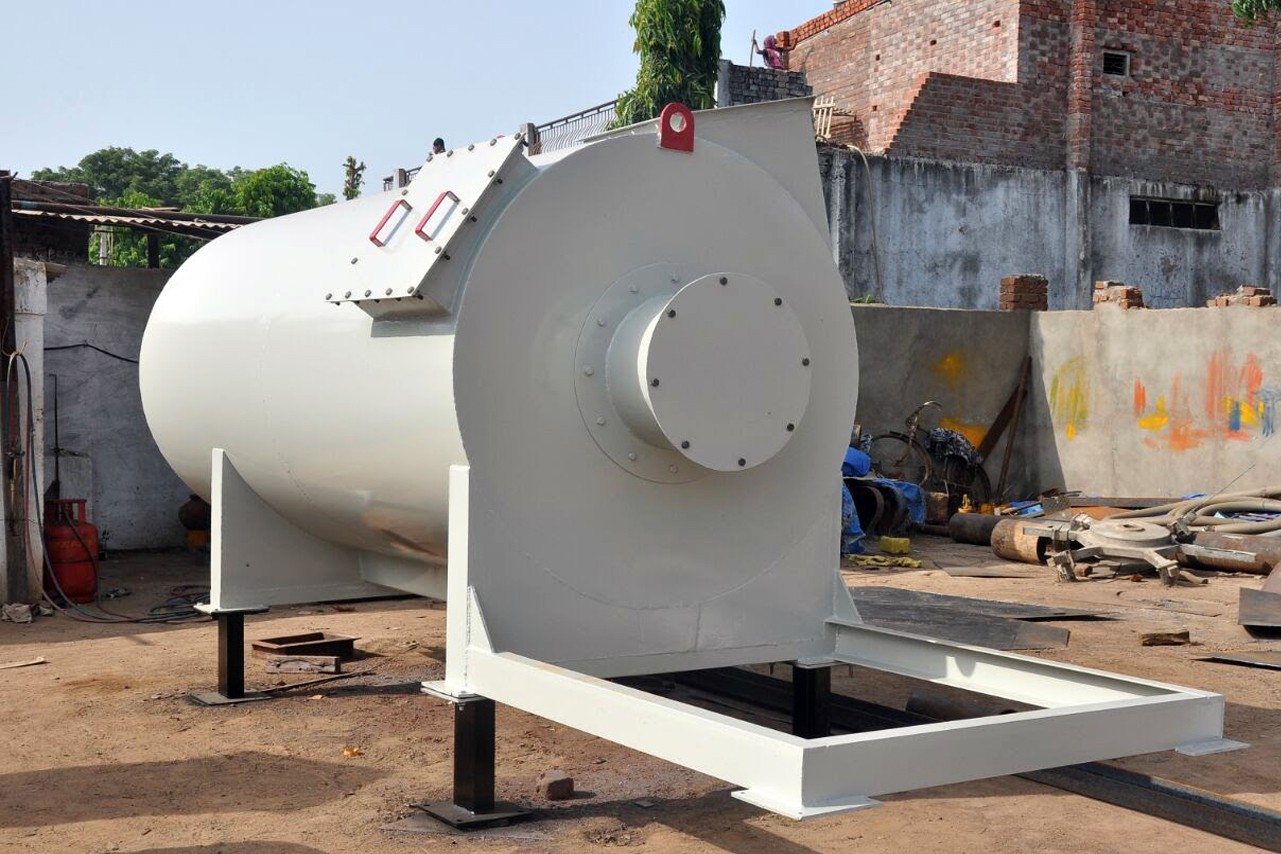

We also manufacture and supply fuel tanks according to requirements and plant capacity. Our tanks are made from high-quality material so they are very durable, long-lasting and require very little maintenance.

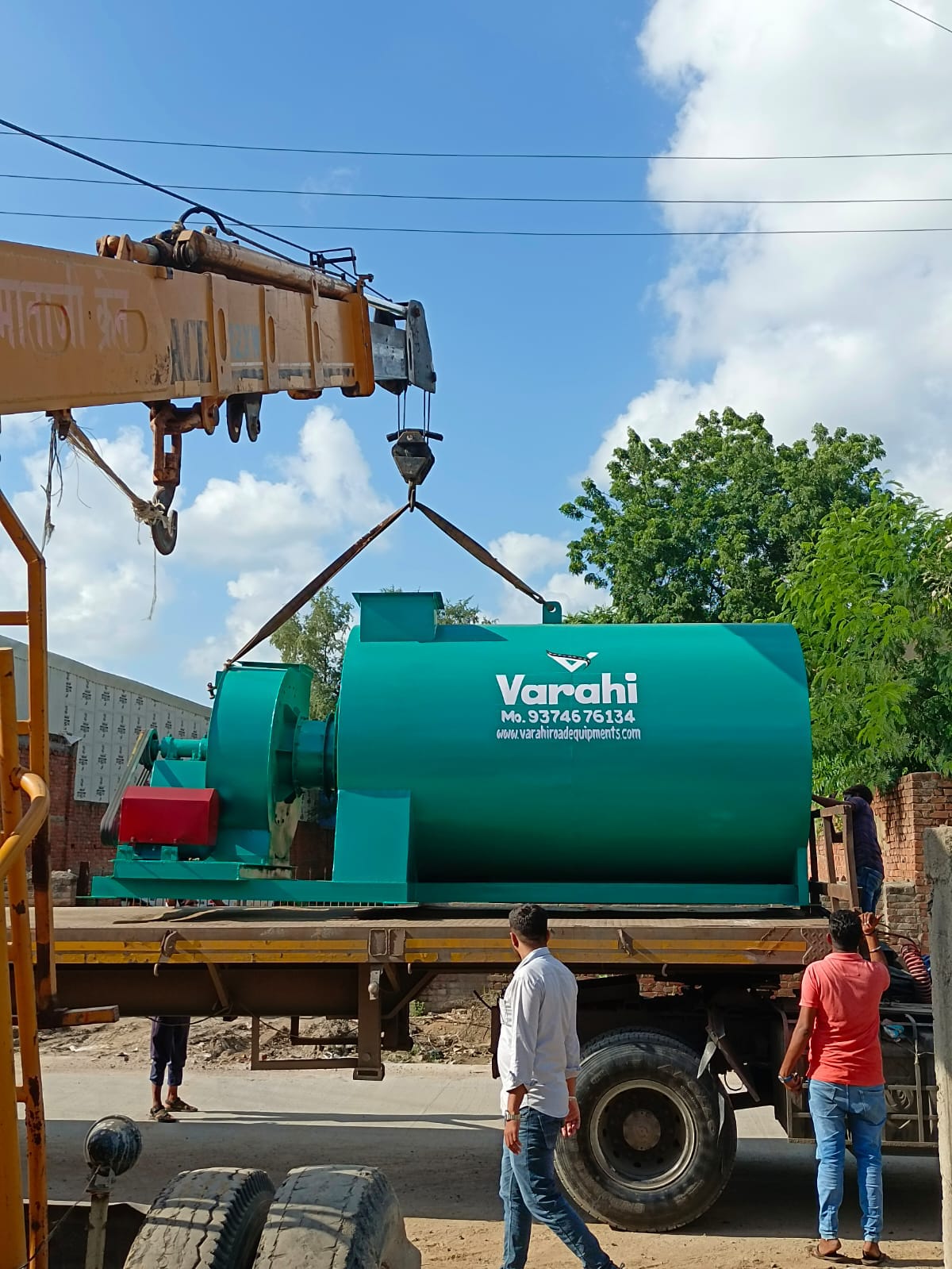

Bitumen tank are made from M. S. plate and thermo coated by galvanized sheet. Fully insulated with 50 mm thick mattress with level indicator, temperature indicator, jacketed pipeline, valves and bitumen pumping unit.
Read More...
The loadout conveyor elevates the asphalt hot mix from drum to such height that it can be directly loaded in a dumper truck. It is fitted with hydraulically operated Gob hopper which helps the material to fall without segregation. The conveyor belt is made from heat resistance grade Material only. Hopper has hydraulic damshell type radial gate with capacity of 1 to 2 Ton depending upon requirements.
We offer a complete standard solution for the safe storage of the Asphalt hot mix through storage silos. Silos are Available in Different Capacities. We manufacture and supply Silos according to customer requirements. Our Silos are rigid, easy to operate and transfer.
